Matrix G7 Strenght User Manual

44
CHAPTER 5: ASSEMBLY INSTRUCTIONS

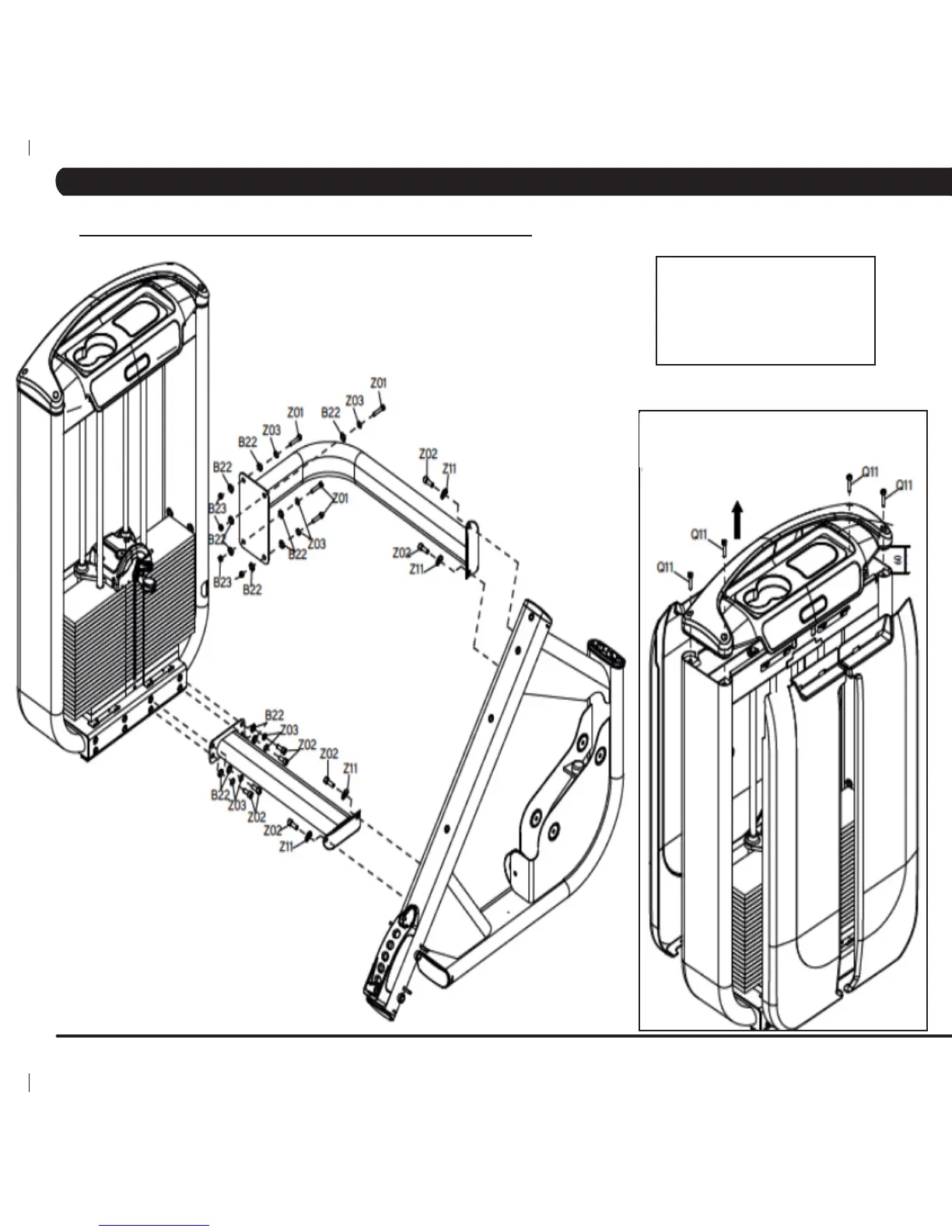

Lift the aluminum wing and top cover, then
take apart the front and rear shields. Q11 bolts
will not be used anymore for the wing and
cover re-assembly.
Item Description Quantity
B22 Flat Washer (M10) 12
B23 Nylon Nut (M10) 4
Z01 Screw (M10 x 75L) 4
Z02 Screw (M10 x 30L) 8
Z03 Spring Washer (M10) 8
Z11 Flat Arc Washer 4
STEP 1
5.4 G7-S23 SHOULDER PRESS ASSEMBLY INSTRUCTIONS - CONTINUED
