Clear this check box only when you do not want to use this FXS Port. Default: Enabled.
• You may assign a Name to the FXS Port. When a call is made through this Port, the name you assigned
will appear on the phone of the called party, if the phone supports name display.
The name you assign may consist of a maximum of 12 characters. Default: Blank.
• You can assign a Number to the FXS Port. When a call is made through this port, the number you
assigned will appear on the phone of the called party, if the phone supports number display.
The number you assign to the FXS Port can have a maximum of 16 characters. Valid characters are 0 to 9,
*, # and +. Default: 2001.
General

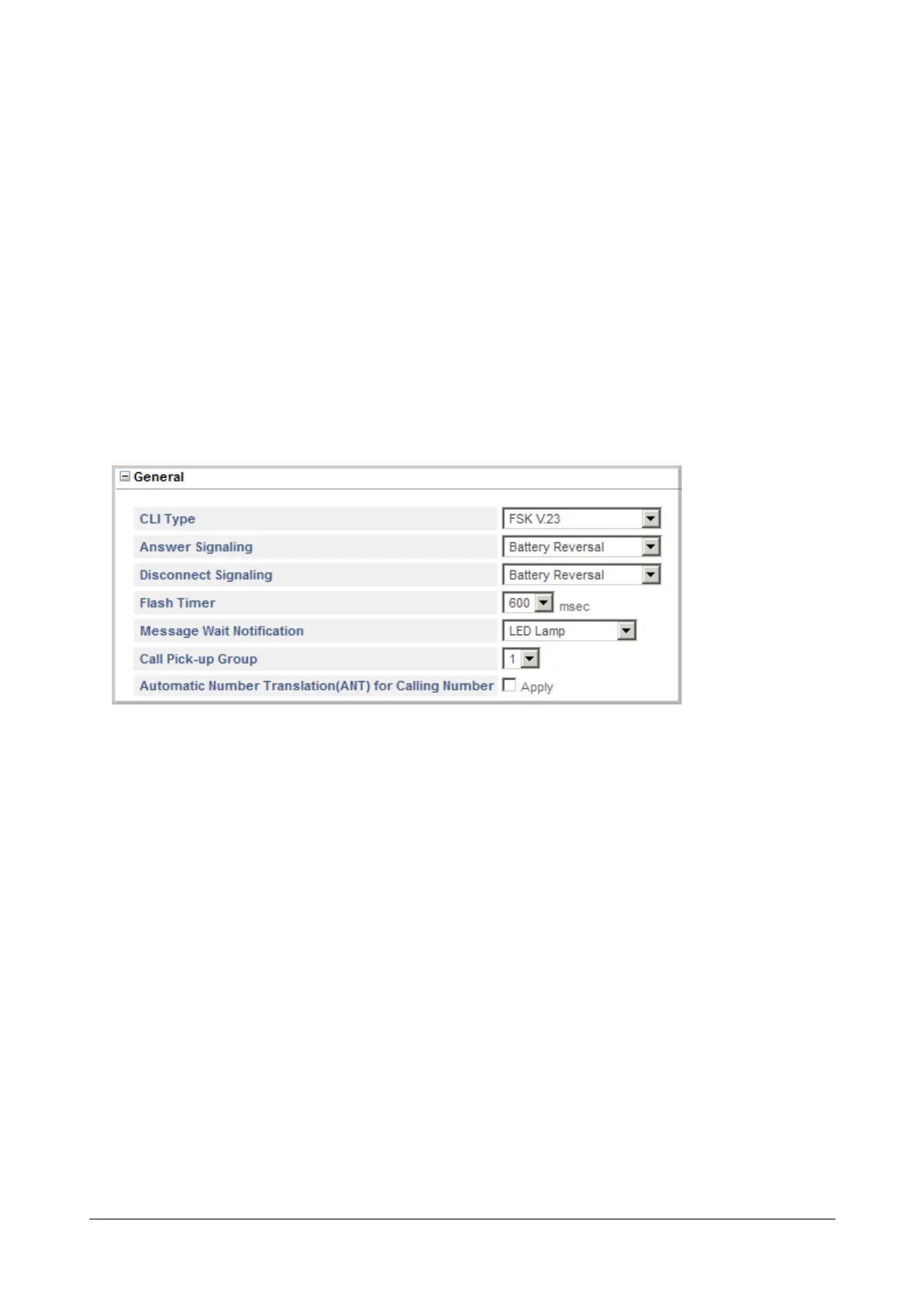

• Click General.
• Select the appropriate CLI Type, according to the CLI Type supported by the telephone instrument/PBX
connected to the FXS Port.
SETU VFXTH supports three signaling protocols for CLI on the FXS Port:
•DTMF
• FSK BellCore
• FSK V.23
Default: FSK V.23
• Select the appropriate Answer Signaling Type on the FXS Port.
Answer Signaling is a signal generated on FXS Port to indicate that the called party has answered (call
maturity).
• Select None, if no answer signaling is to be generated on the FXS Port.
• Select Battery Reversal, if answer signaling is to be generated in the form of Battery Reversal on the
FXS Port.
Default: Battery Reversal
• Select the appropriate Disconnect Signaling Type on the FXS Port.
