• You may mount the system on a wall. Refer the mounting template for dimensions and accordingly drill the
holes on the wall.
Connecting SETU VFXTH
SETU VFXTH0032 has 1 Reset Button, 1 Ethernet (WAN) Port, 32 FXS Ports, 32 SIP Trunks, a Power Socket and
34 LEDs. Depending on the configuration, the number of FXO Ports, FXS Ports and LEDs may vary.
Connecting to the IP Network
Before you connect the system to WAN, we recommend that you first connect a computer to the Ethernet
Port of SETU VFXTH, configure the Basic Settings, and then connect to WAN.
•
Use the Ethernet cable supplied for the Ethernet Port of SETU VFXTH to connect the system to the Public
network or Private Network.
If connecting to the Public IP Network,
• Plug one end of the Ethernet cable into the Ethernet Port of SETU VFXTH and the other end into the DSL
modem / Router.

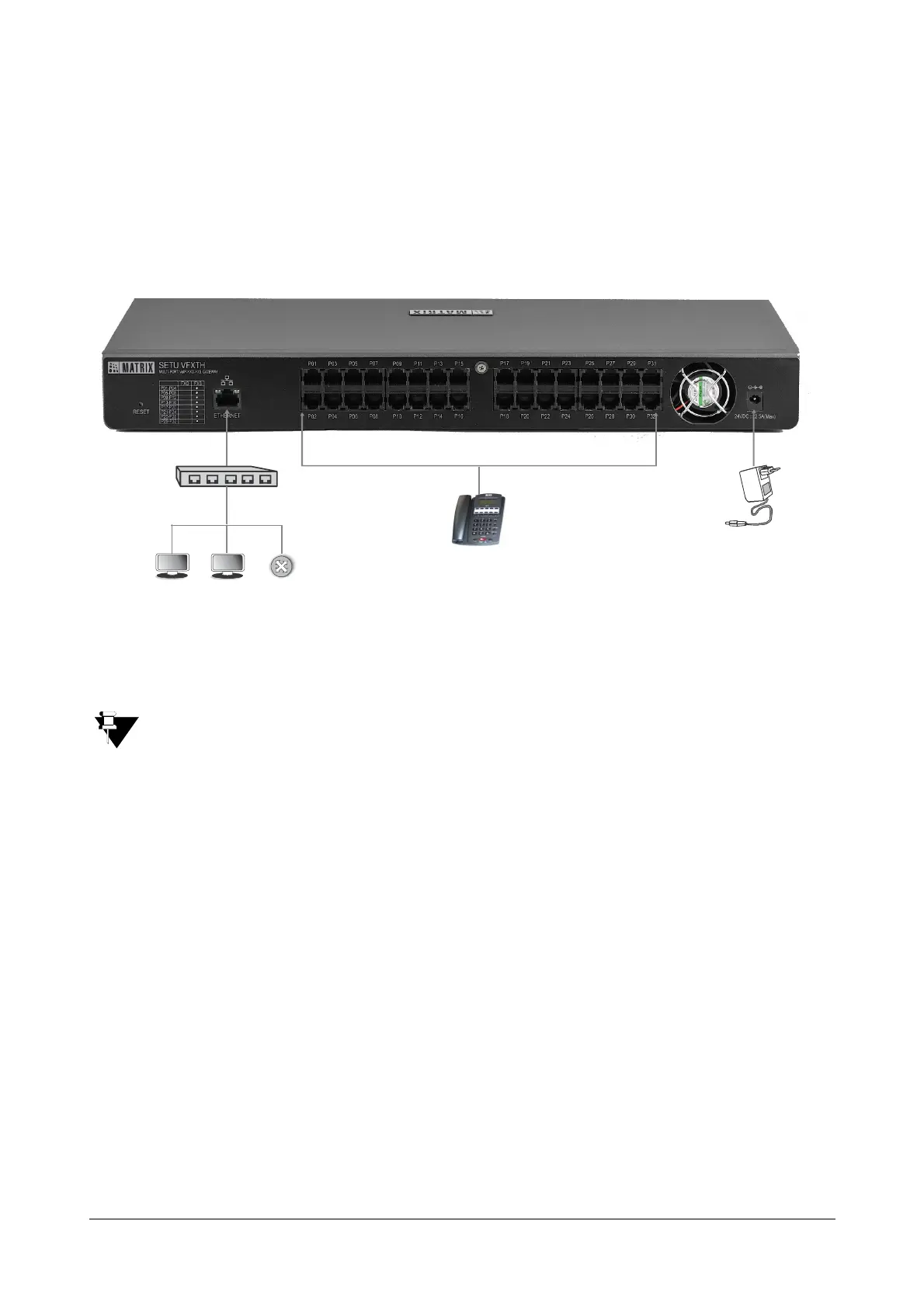

LAN Switch/
Hub
Modem/
Router
Computers
Power
Adapter
Standard
Tel eph on es
