Matrix SETU VFXTH System Manual

55 Matrix SETU VFXTH System Manual
FXO Port
SETU VFXTH supports sixteen FXO Ports,
• interfaced with the analog trunk from CO and used to route incoming calls to FXS Port and SIP Trunks.
- or -
• interfaced with FXS Port of the PBX.

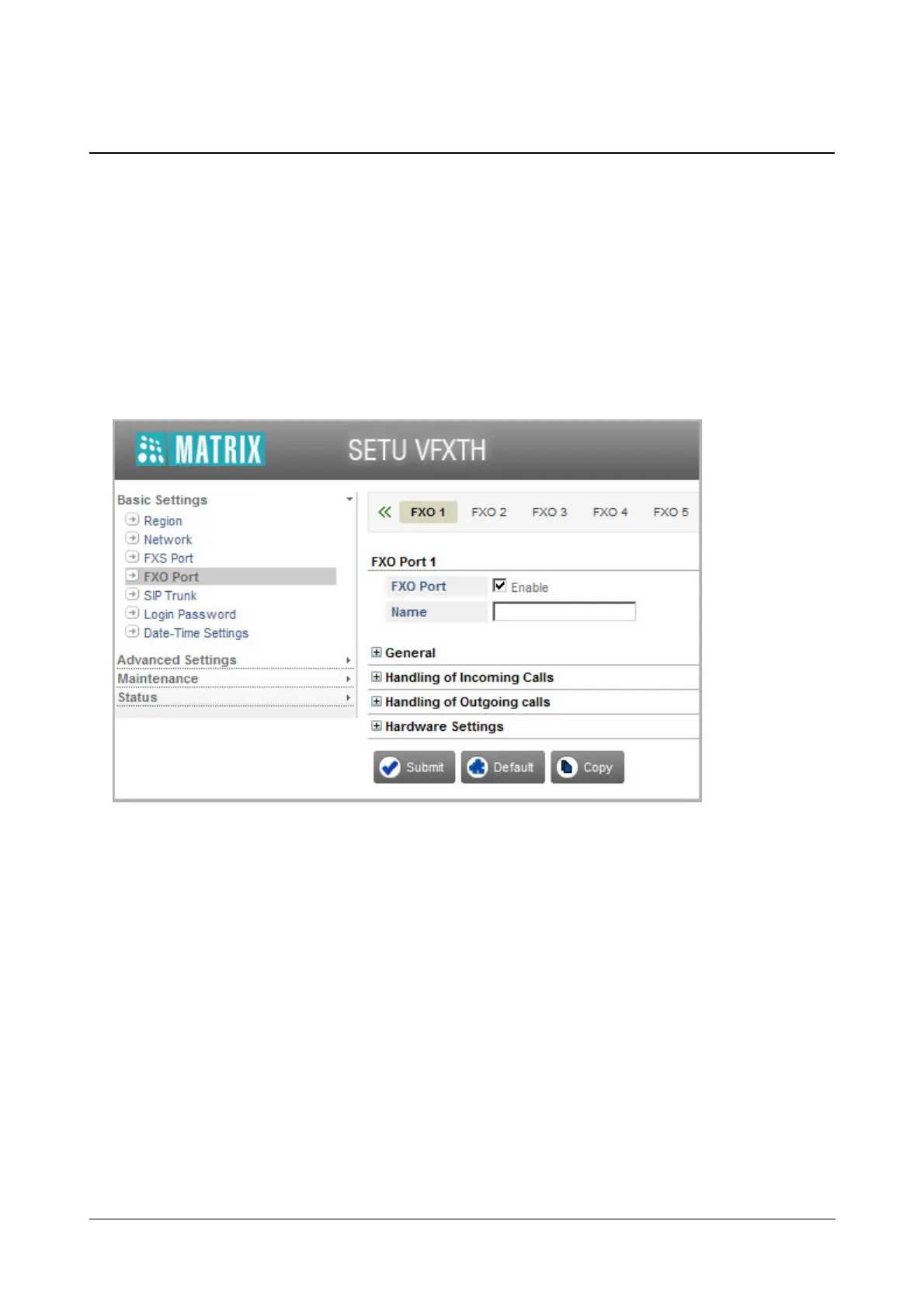

To configure the parameters of the FXO Port,
• Click the Basic Settings link to expand.
• Click the FXO Port link.
• Click the required FXO Number tab, FXO 1 to FXO 16, you want to configure.
• Keep the FXO Port check box enabled.
Clear the FXO Port Enable check box only when you do not want to use this FXO Port. Default: Enabled.
• You can assign a Name to the FXO Port, which will be displayed to the called party, if the called party
telephone instrument supports name display. Default: Blank
The name you assign may consist of a maximum of 12 characters.

Matrix SETU VFXTH Specifications

General

Brand	Matrix
Model	SETU VFXTH
Category	Gateway
Language	English
