If connecting to a Private Network (Behind a NAT Router),
• Plug one end of the Ethernet cable into the Ethernet Port of SETU VFXTH and the other end into the LAN
Switch/Hub.
The default IP Address of the Ethernet Port is: 192.168.1.100
The default Subnet Mask of the WAN Port is: 255.255.255.0
Connecting to the CO Network
• To the FXO Ports, connect the Analog Trunk lines from your CO Network/PSTN.
You may also connect a PBX to the FXO Port.
Connecting Telephone instruments
• To the FXS Ports, connect standard single line telephones using standard telephone cables with RJ11
plugs.
You may also connect a Fax machine or a PBX to the FXS Port.

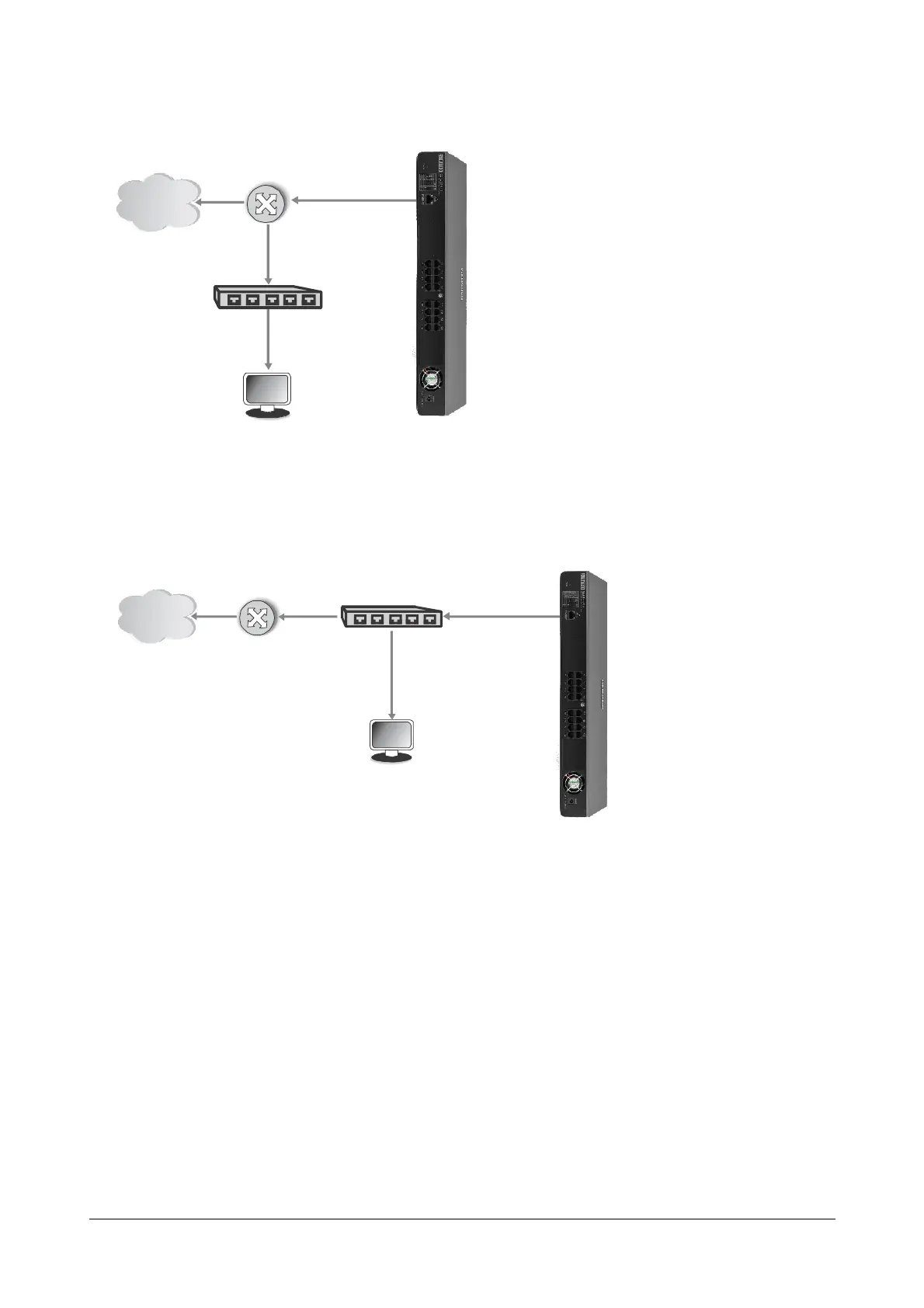

IP
Router/
Modem
SETU VFXTH
LAN Switch/
HUB
Computer
Ethernet
WAN
IP
Router/
Modem
SETU VFXTH
LAN Switch/
HUB
Computer
Ethernet
WAN
