Components Weight
Center of Gravity in respect to
the Ceiling Column axis
Ceiling Column 215 mm 4.1 kg 0 mm
Ceiling Column 415 mm 6.2 kg 0 mm
Ceiling Column 815 mm 10.5 kg 0 mm
Canopy 0.7 kg 0 mm
Extension Arm 9.5 kg 403.5 mm
Spring Arm 13.0 kg 1474.2 mm
Injector Holder 4.5 kg 1845.6 mm
CT Exprès®
Saline & Cables & Handle
19.0 kg 1977.0 mm
Table 1 Weights and Center of Gravity for System Components

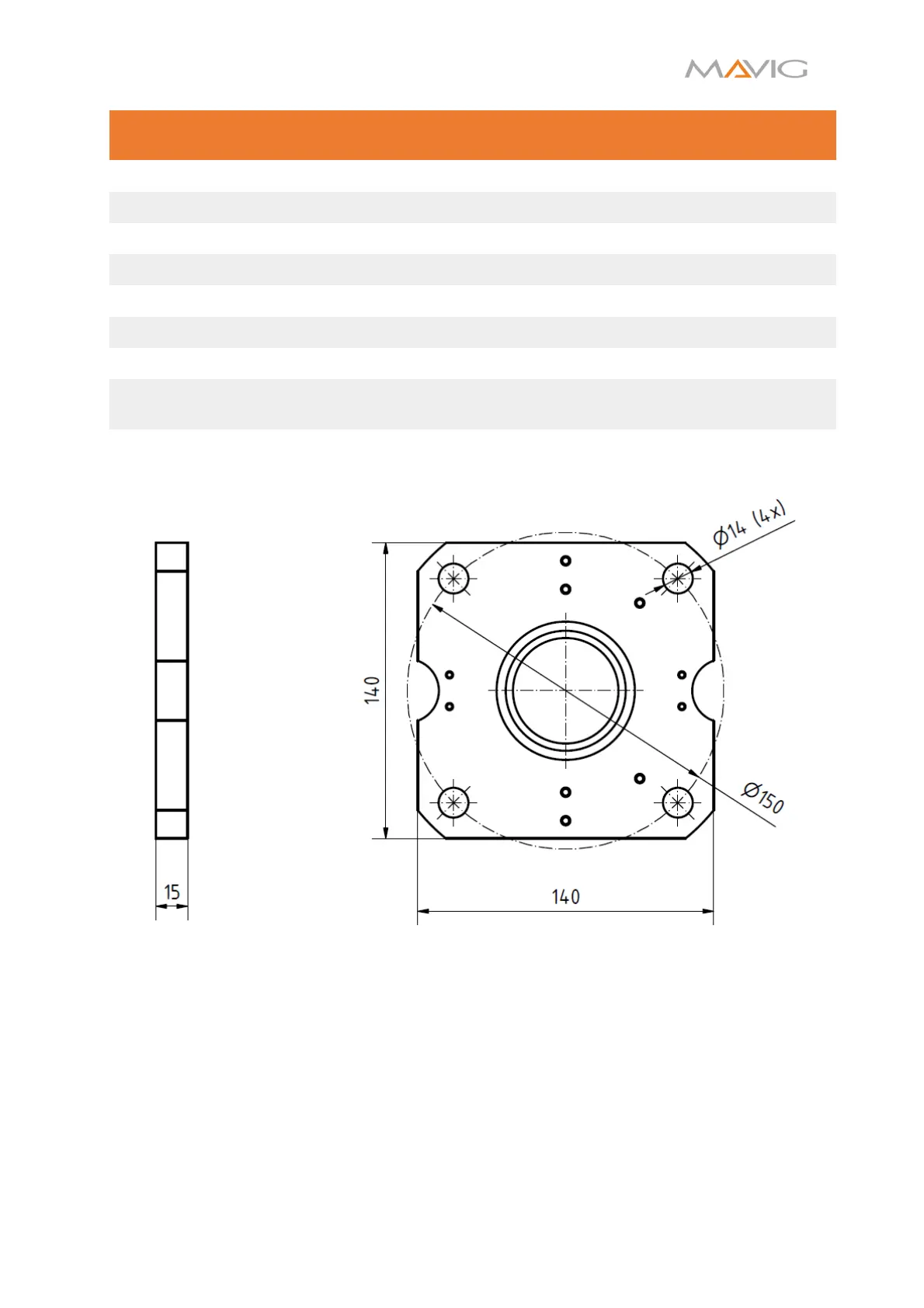

The Ceiling Column flange plate dimensions are shown in Figure 11.
Figure 11 Ceiling Column Flange Plate Dimensions
