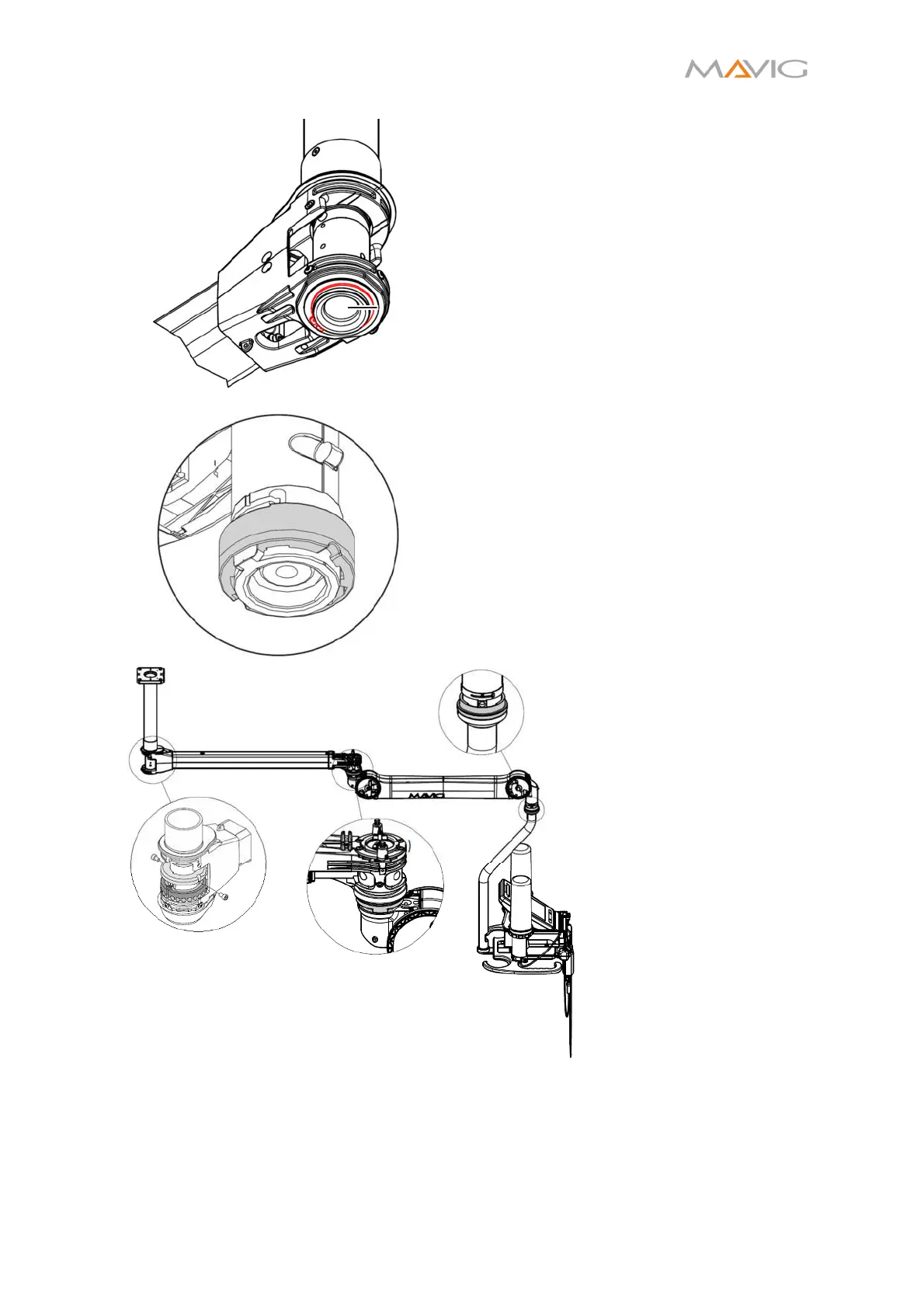

The securing ring ① on the bottom
extension arm towards the spindle is
undamaged and sealed. See Section 11.4.
Check the securing sleeve on the front spring
arm joint for damage.
All end-stop components
are undamaged.
• The carrier system parts are free of deformation.
• The system is free of paint damage.
• All plastic parts are available, in position and free of cracks.
• All cables are free of pressure/chafe marks and there is no abrasion visible.
