Page 71 P/N 03521015 Rev Q

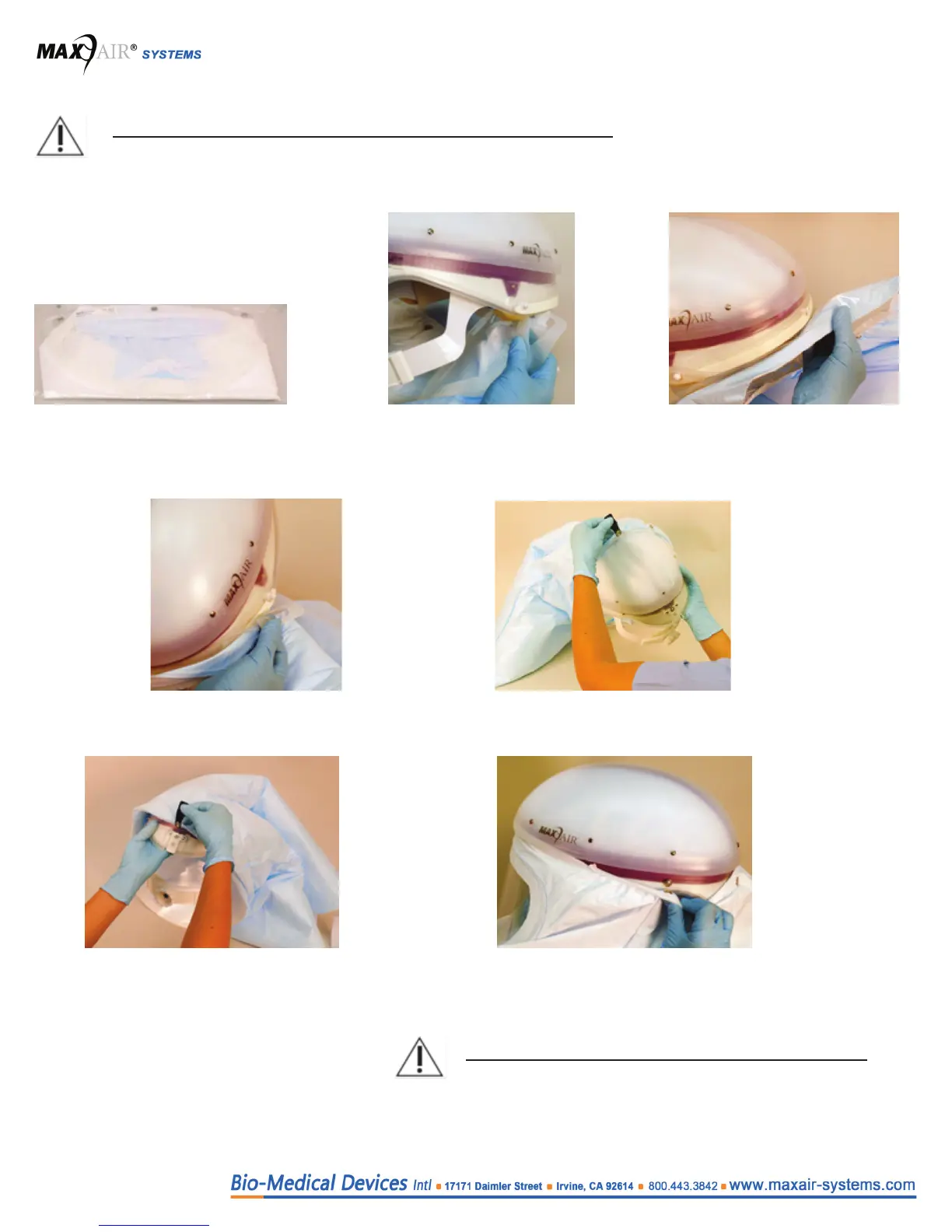

Prepare Double Shroud and Helmet for Assembly:
WARNING
Dispose of contaminated Shrouds according to
your Institution’s protocols.
Assembly
3. Secure the center DLC
alignment hole over the FCC
front alignment post.
4. Attach the other side of the DLC to the
other Helmet side attachment post.
5. Hold helmet securely, grasp the shroud’s rear pull
tab and pull shroud up and over helmet.
2. Attach one side of the DLC
alignment hole to the Helmet
side attachment post (Cu
facing inward)
6. Pull Shroud down over back of helmet and
fasten rear snap to FCC T-Tab snap.
7. Pull shroud down around Helmet and secure rear side snaps
to each FCC rear side snaps (Both sides).
Disassembly
Reverse steps 2 through 7 to
remove Shroud from Helmet.
1. Remove Double Shroud from
packaging and lay shroud on the
counter with lens/snaps facing up.
NOTE
Read Sections 1 through 13 before proceeding.
