5.0 Installation
5.1. Preparation for installation
5.1.1. Installation tools

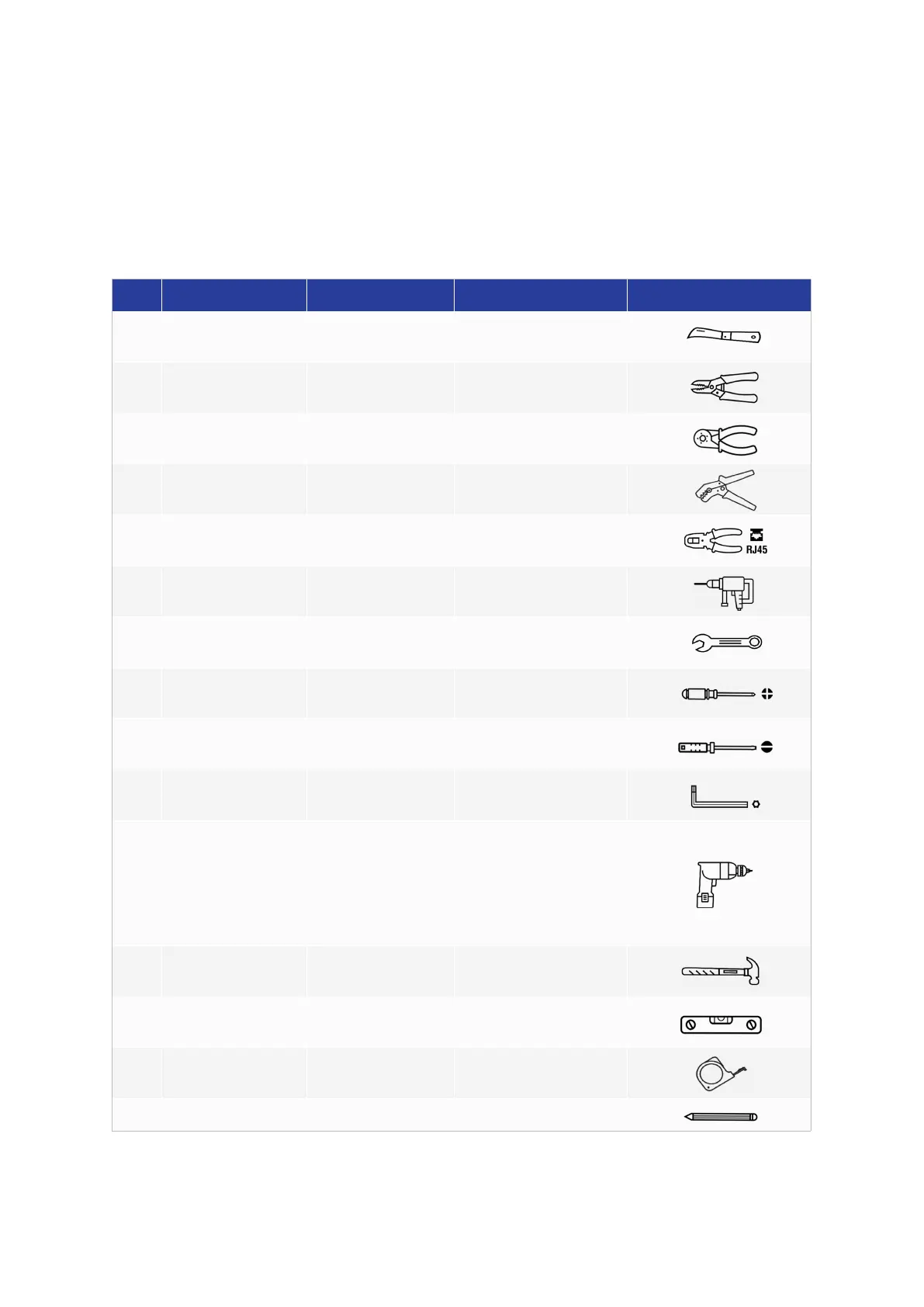

No. Type Name Purpose Picture
1 Cable processing Electrician knife
Stripping of insulating
layers
2 Cable processing
Wire stripping
pliers
Stripping of insulating
layers
3 Cable processing Crimping pliers
Crimping of pin
terminals
4 Cable processing Crimping pliers
Crimping of ring
terminals
5
Network cable
processing
RJ45 Network
crimping pliers
Crimping the RJ45
connector
6
Tool for
installation
Percussion drill Drilling
7
Tool for
installation
Combination
wrench (full set)
Installing and
removing nuts
8
Tool for
installation
Screwdriver (PH2)
Installing and
removing screws
9
Tool for
installation
Screwdriver (SL2)
Installing and
removing screws
10
Tool for
installation
Torx screwdriver
(full set)
Installing and
removing screws
11
Tool for
installation
Electric torque
screwdriver (with
full set of PH
screw bit, Torx
screw bit and SL
screw bit)
Installing and
removing screws
12
Tool for
installation
Hammer Knocking
13
Measuring
instrument
Spirit level
Measurement of
levelness
14
Measuring
instrument
Tape measure
Distance
measurement
15 Marking tools Pencil Marking
Notice: The above tools shall be selected based on the actual situations on site.
