5.3. Wall mounting

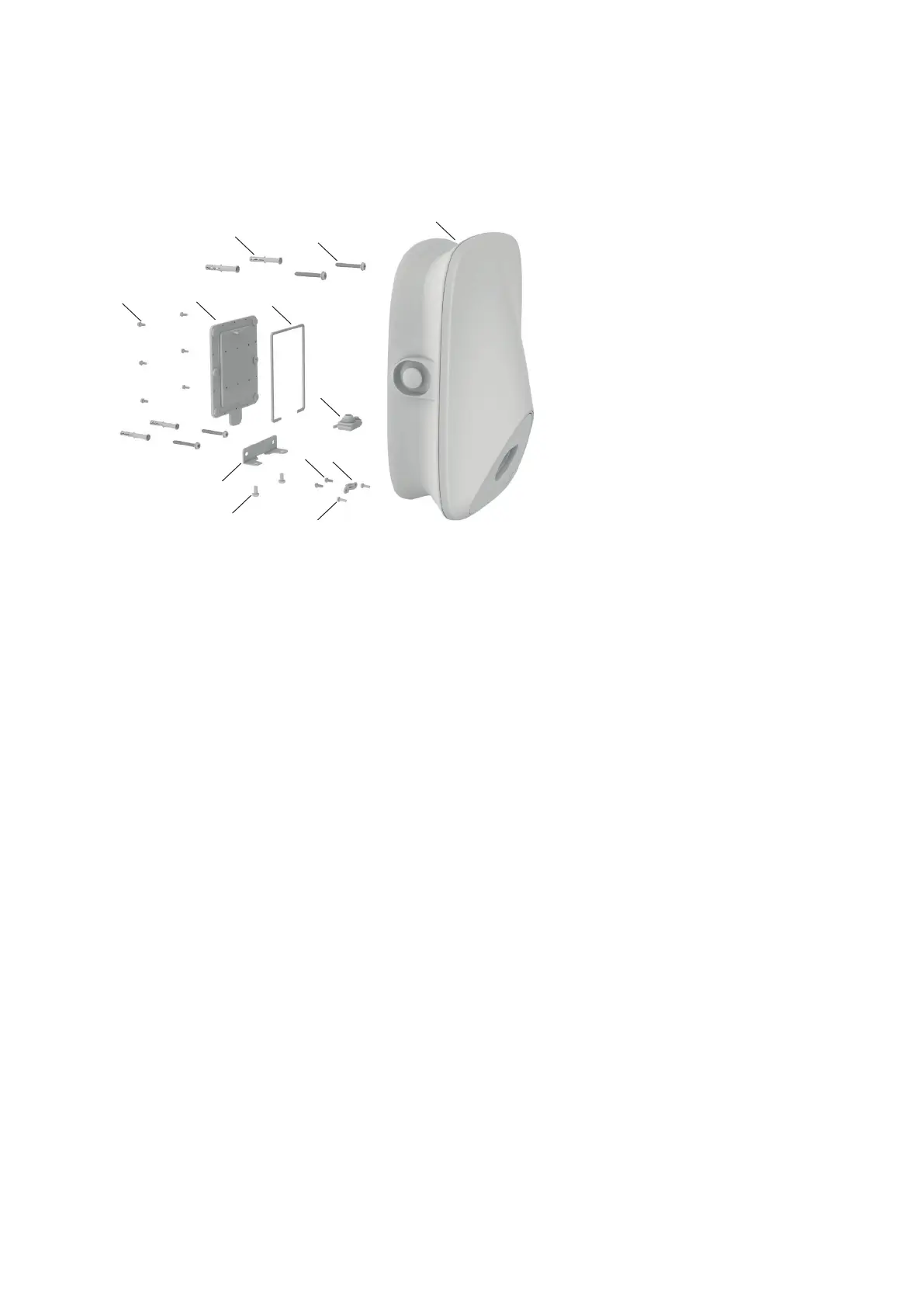

The general assembly drawing of wall mounting as shown in Figure 2.
Figure 2 General assembly drawing of wall mounting
SunPower Drive charging station
Cable inlet rubber plug
Sealing joint strip
Rear cover
Mounting bracket
Plastic cable clamp
8mm x 60mm plastic expansion
tube / wall anchor plug
M6*50 self-tapping screw
M4*12 cross combination screw
M6*12 Torx screw
M4*12 cross combination screw
M4*12 cross combination screw
