In the case where the Ethernet port is not used for communication with the internet, a Direct
Connection to the Peak Controller can be set up as shown below.
In the case where the Ethernet port is used for communication with the internet, and a Peak
Controller is required as part of the installation, a Local Network Connection to the Peak Cont-
roller can be set up as shown below.

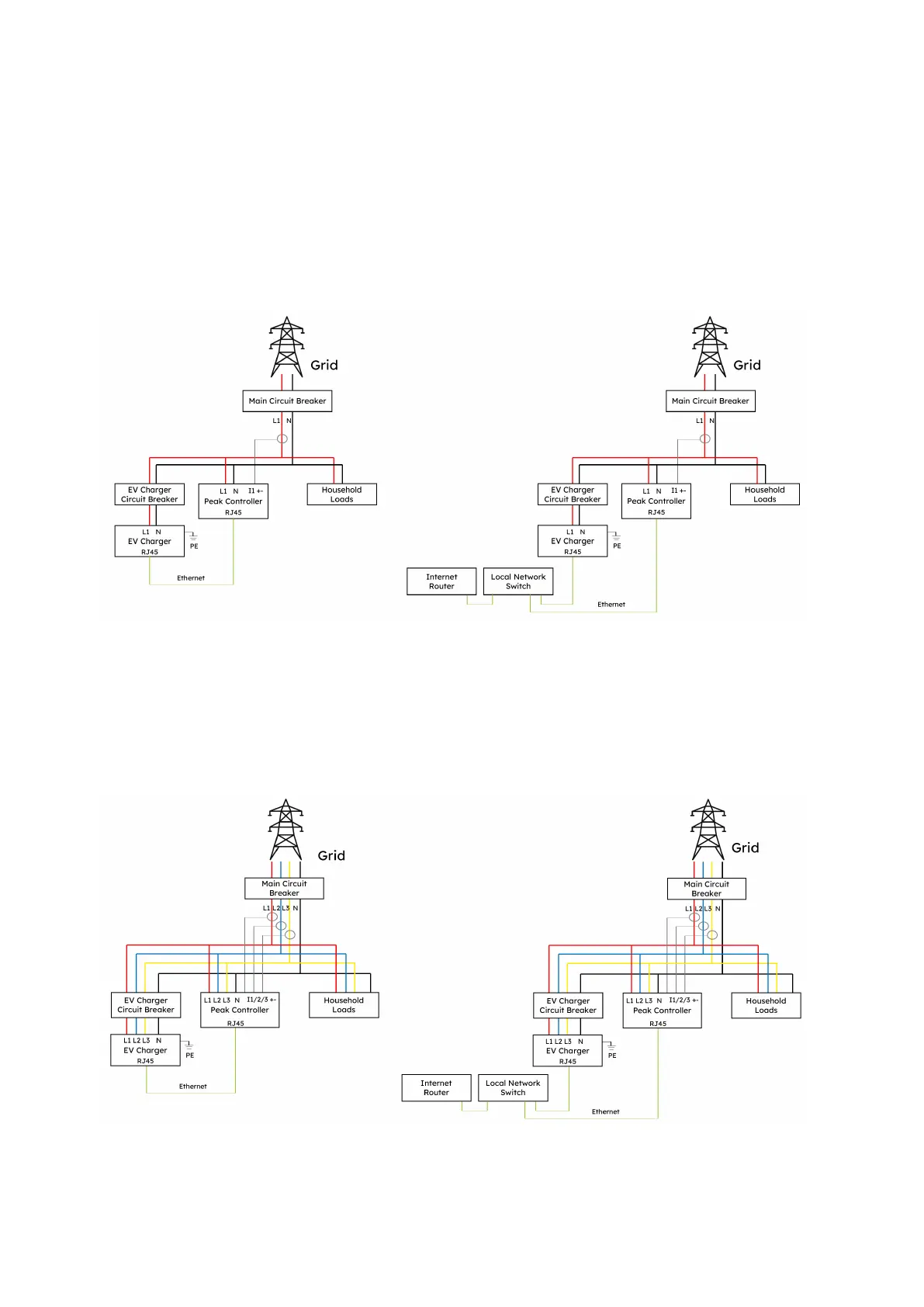

Direct vs. Local Network (1 phase installation)
Direct Connection Local Network Connection
Direct vs. Local Network (3 phase installation)
Direct Connection Local Network Connection
