McHale Orbital Round Bale Wrapper
29
4.10 Machine lifting guidelines
Should the machine need to be lifted, it will require two lifting plates. (Order from your
McHale dealer using part no. CZH05307 (2x)).
Remove the bobbin brackets and fit the lifting plates using the bolts as shown below.
WARNING: Machine lifting
The machine may be lifted using the two lifting points while the
drawbar is in the road transport position.
Only use chains or strapping that are rated for a minimum load
of two tonnes (2,000 kg) per chain or strap when using the two
lift eye locations on the chassis, shown below.
Lift the machine very slowly at first, checking the balance.
Adjust the hooks between hole positions if necessary.
The crane or lifting device must be capable of lifting a
minimum load of four tonnes (4,000 kg).
Never go under a suspended machine or attempt to try and
stop it if moving erratically, death or serious injury may result.
Always be observant of people and objects around the
suspended machine and do not allow the machine to impact
heavily on the ground after suspension or movement.

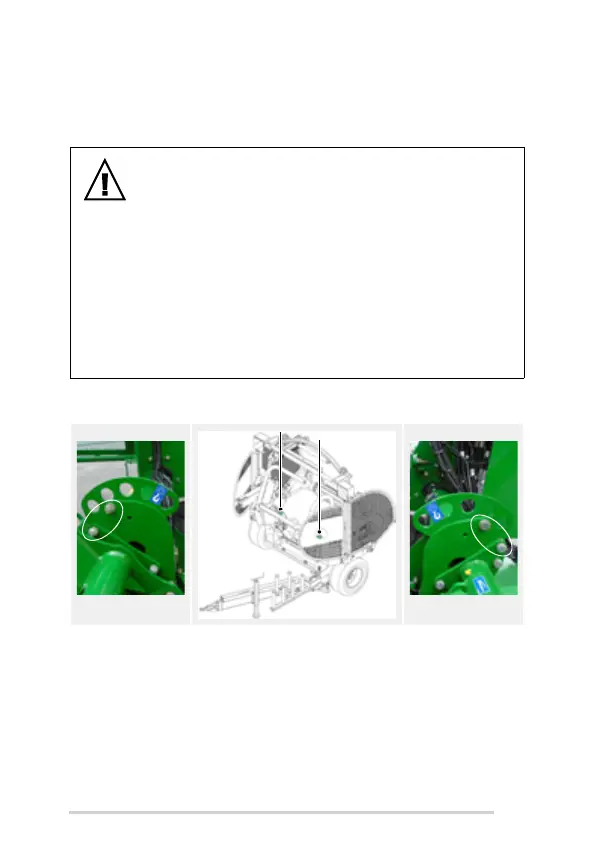

RHS lift hook LHS lift hook
