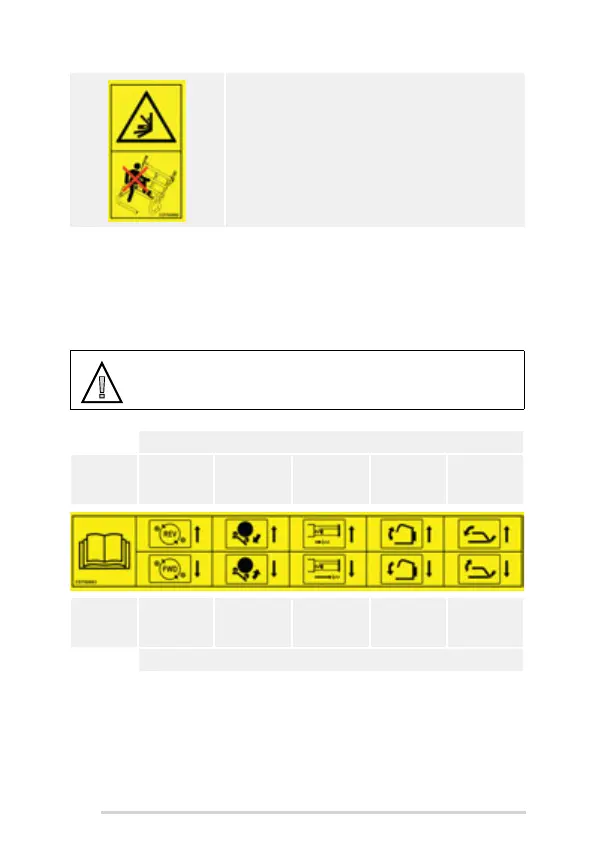

4.8 Hydraulic control valve unit decal
The machine is fitted with an emergency hydraulic valve instruction decal. In an
emergency, the hydraulic control valve unit levers may need to be activated manually,
depending on the specific situation. If the decal becomes damaged or missing, a
replacement part CST00883 can be ordered from your McHale dealer.
In normal operation, the machine functions are only allowed to happen in a specific
sequence. For this reason, some valves are not fitted with actuation levers as there is
a danger of causing damage to the machine. However, each valve can be actuated
separately, using an 8 mm ring spanner providing these cautionary note conditions are
satisfied.
Load arm paddle
(CST00960)
CAUTION: Use only for troubleshooting or in an emergency!
Normally, these levers should never be tampered with apart from
troubleshooting or in an emergency situation.
Lever up
Lever up
Dispenser ring
rotate -
reverse
Tip arm -
lower
Cut and hold -
partial open
(spring return)
Clamp arm -
open
Load arm -
down
Lever
down
Dispenser ring
rotate -
forward (normal)
Tip arm -
raise
Cut and hold -
full open
(spring return)
Clamp arm -
close
Load arm -
up
Lever down
