Once the mechanical adjustment is set for the correct bale size, then the upward tip
speed can be fine tuned from the control box until the desired results are achieved.

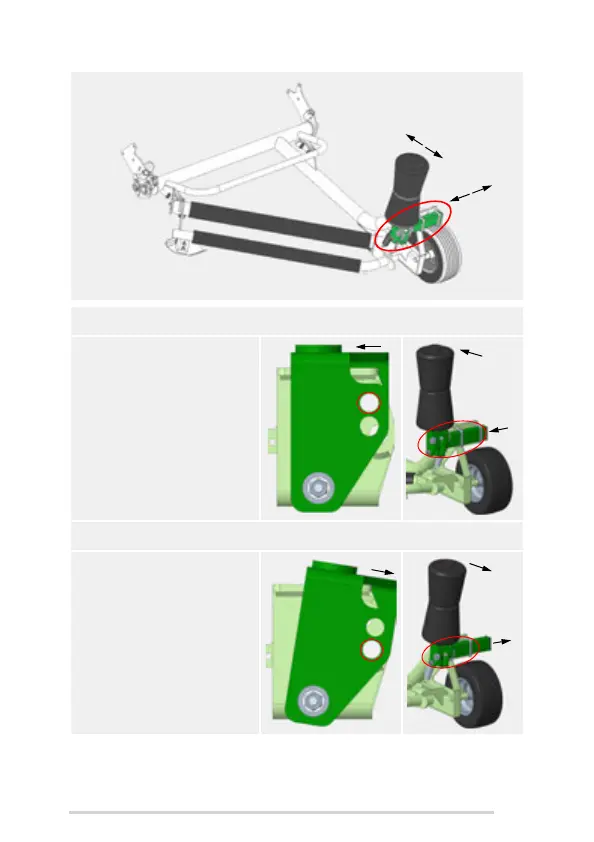

Position A (upright & inwards) for bales up to ø 1,250 mm
Secure the lock pin through the
upper pinhole in the rear bobbin
stack assembly to keep the
bobbins upright as shown.
Using a 24 mm spanner, loosen
the 4 nyloc nuts on the U-bolts
and slide the tube inwards as
shown. Then tighten the nuts
securely.
Position B (tilted & outwards) for bales between ø 1,250 mm and ø 1,450 mm
Secure the lock pin through the
lower pinhole in the rear bobbin
stack assembly to allow the
bobbins to tilt backwards as
shown.
Using a 24 mm spanner, loosen
the 4 nyloc nuts on the U-bolts
and slide the tube outwards as
shown. Then tighten the nuts
securely.
