Mega 105WR Router - Manual
Page 32 of 82

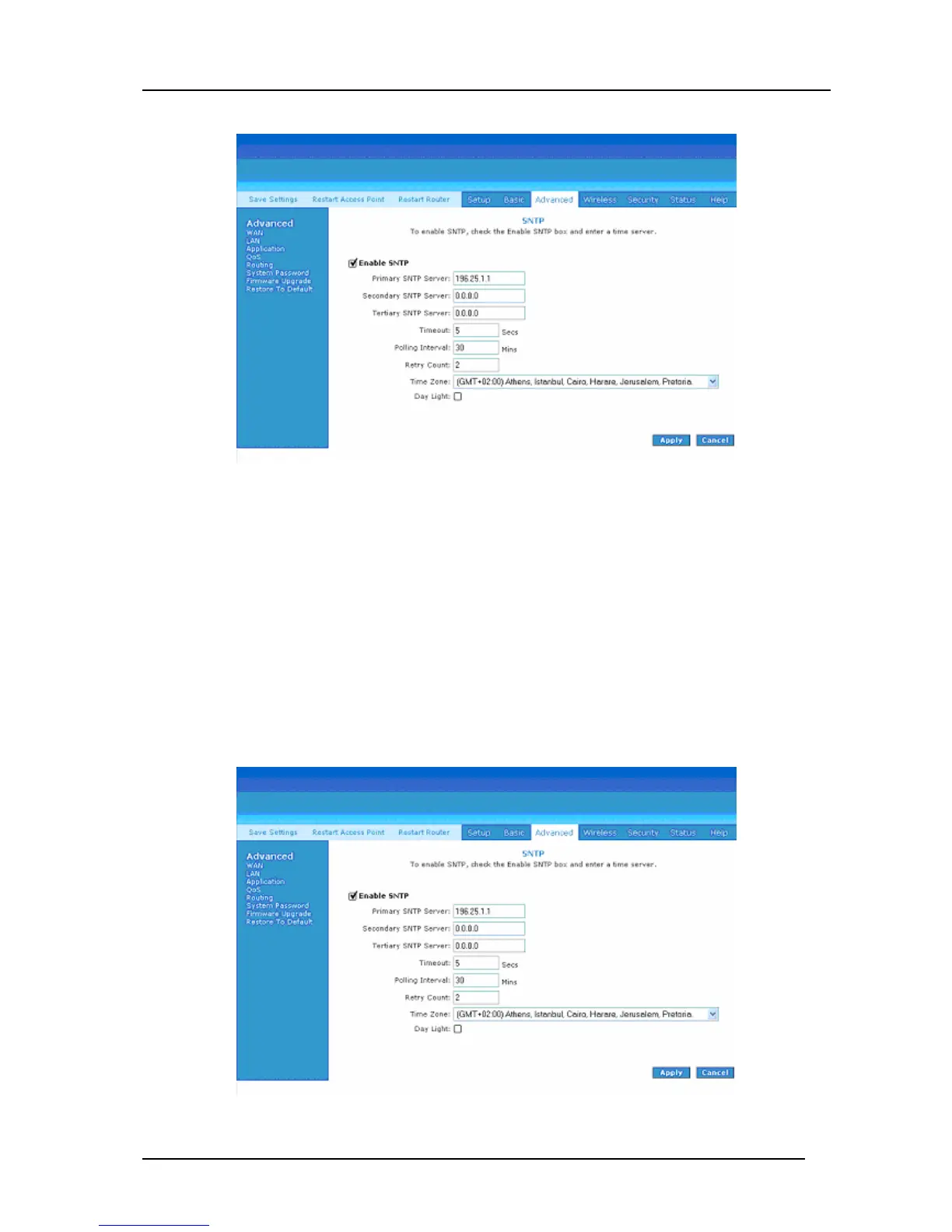

Figure 4-23: SNTP
4.5.10 SNMP
SNMP (Simple Network Management Protocol) is a troubleshooting and management
protocol, which uses the UDP protocol on port 161 to communicate between clients and
servers. SNMP uses a manager MIB (management information base) agent solution to
fulfill the network management needs. The agent is a separate station that can request data
from an SNMP agent in each of the different managed system in the network. The agent
uses the MIBs as dictionaries of manageable objects. Each SNMP-managed device has at
least one agent that can respond to the queries from the NMS. The SNMP agent supports
GETS, SETS, and TRAPS for 4 groups with MIB-II: System, Interface, IP, and ICMP. The
SNMP agent supports three-community names authentication. See Figure 4-24.
Figure 4-24: SNMP Management
