Example 3: PRIOWRR Enabled
In the third example, shown in Figure 4-47, PRIOWRR is enabled. Since PRIOWRR operates
only on the number of packets being transmitted, the max rate field has been disabled.
Percentages are assigned to CoS2 - CoS6 and CoS1 is not rate controlled (hence the field is not
displayed). When there are no CoS1 packets, CoS2, CoS3 and CoS4 each have 10 percent, and
CoS6 has 70 percent. This is similar to the Low Latency Queue option, except that one is packet-
based, and the other is rate-based.

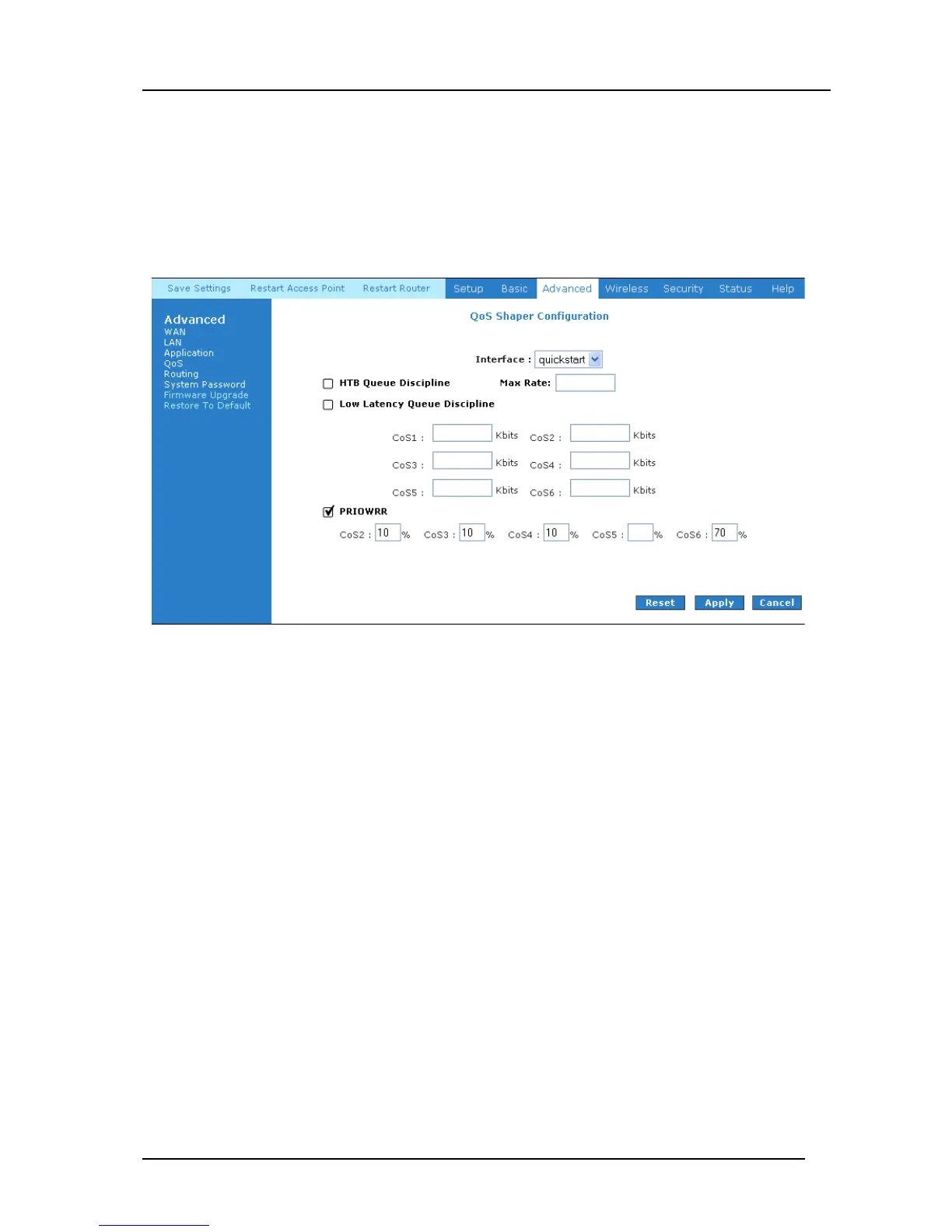

Figure 4-47: PRIOWRR enabled
