Example 2: Low Latency Queue Discipline Enabled
In this second example shown in Figure 4-46, Low Latency Queue Discipline is enabled. CoS1 is
not rate controlled (hence the field is disabled). CoS2 takes 100 kbits when there are no CoS1
packets. CoS6 has 300 kbits when there are no CoS1 or CoS2 packets. This is similar to the HTB
queue discipline as they are both rate-based algorithm, except that CoS1 is handled differently.

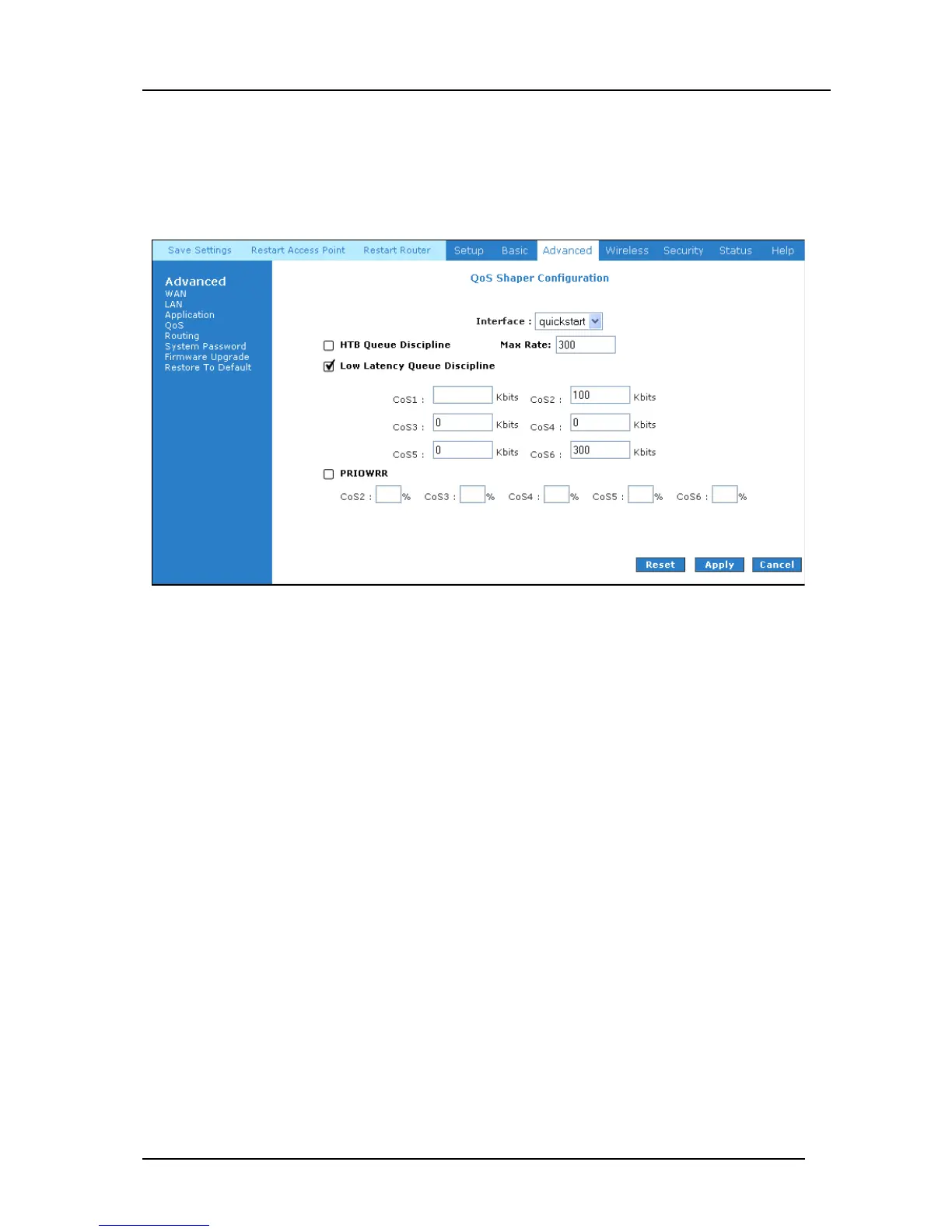

Figure 4-46: Low Latency Queue Discipline enabled
