Mega 105WR Router - Manual
Page 41 of 82

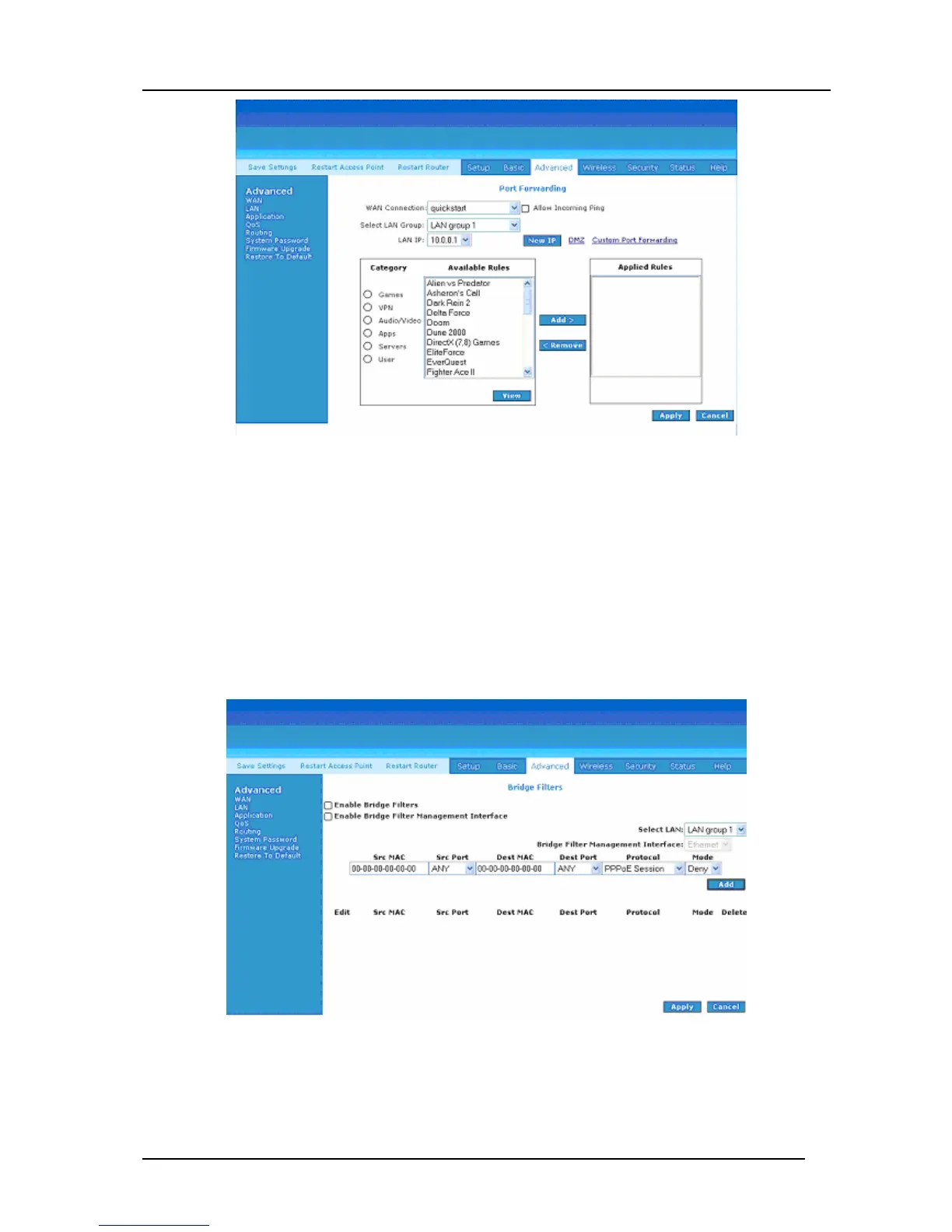

Figure 4-33: Port Forwarding
4.5.20 Bridge Filters
The bridge filtering mechanism provides a way for the users to define rules to allow/deny
frames through the bridge based on source MAC address, destination MAC address and/or
frame type. When bridge filtering is enabled, each frame is examined against each defined
filter rules sequentially. When a match is determined, the appropriate filtering action
(determined by the access type selected i.e. allow or deny) is performed. Please note that
the bridge filter will only examine frames from interfaces, which are part of the bridge
itself. Twenty filter rules are supported with bridge filtering. See Figure 4-34.
Figure 4-34: Bridge Filters
