Operation and control
Mechanical temperature monitoring: Temperature limiter (TB)
The appliance is equipped with a mechanical temperature
limiter (TB) of protection class 1 in accordance with DIN 12 880. If
the electronic monitoring unit fails during operation and the
default maximum temperature is exceeded by at least 20 °C, the
temperature limiter, as the final protective measure, switches off
the heating permanently.

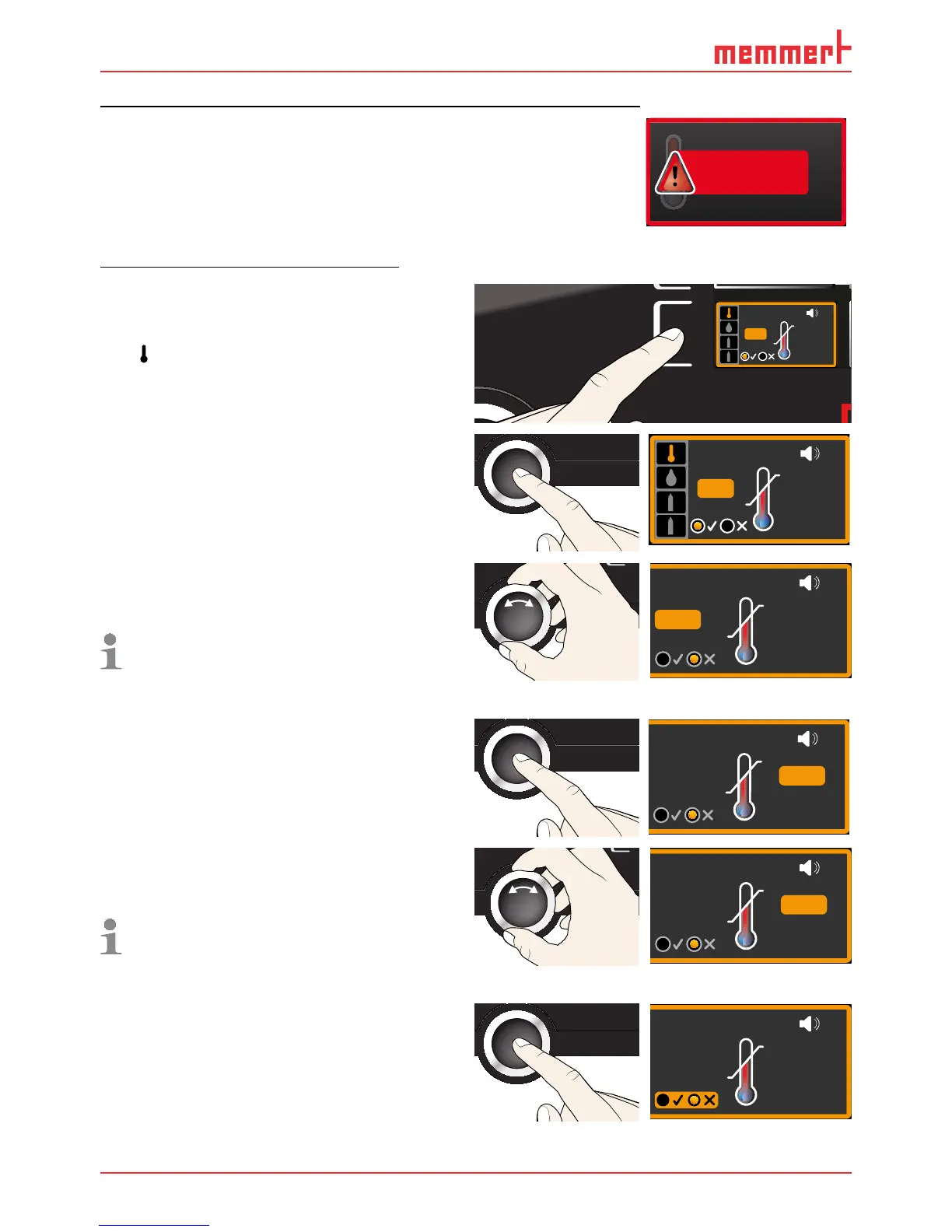

Adjusting temperature monitoring
1. Press the activation key to the left of the
ALARM display. The temperature moni-
toring setting is automatically activated
(
).
min
000°C
ALARM
max
000°C
auto off
99K
-
+
ALARM
max
auto
40
0.0K
min
15.0°C .0°C
+
-
2. Save the selection by pressing the con-
firmation key. The
min setting (under-
temperature protection) is automatically
activated.
ALARM
max
auto
40
0.0K
min
15.0°C .0°C
+
-
1. By turning the turn control, adjust the
desired lower alarm limit value, in the
example on the right 35.5 °C.
The lower alarm limit value cannot be set
higher than the top one. If no undertem-
perature protection limit is required, set
the lowest temperature.
ALARM
0.0K
min
°C
auto
max
40.0°C
35 5.
+
-
2. Press the confirmation key to confirm.
The
max display (overtemperature pro-
tection) is activated.
ALARM
0.0
K
min
°C
auto
max
°C
35 5.
40 0.
+
-
3. By turning the turn control, adjust the
desired upper alarm limit value, in the
example on the right 38.5 °C.
The monitoring temperature must be set
sufficiently high above the maximum set
temperature. We recommend 0.5 to 1 K.
ALARM
0.0K
min
°C
auto
max
°C35 5. 38 5.
+
-
4. Accept the upper alarm limit value by
pressing the confirmation key. The setting
of the automatic temperature monitor
(ASF) is automatically activated (
auto).
ALARM
max
38.5°C
0.0K
min
35.5°C
auto
+
-
TEMP
TB Set 38.5 °C
72.4°C
