Programmable Outputs
The TS700 has many programmable outputs which can be used to drive relays, LED’s etc. Each
output c an be programmed for a diff eren t functi on, s ee "Programmabl e Output Types" on pa ge
17.
Control Panel Outputs
The control panel has four high current programmable outputs:
[-1] - Set of vo ltage free changeover contac ts rated at 1 Amp.
[-2] - Switched -ve outp ut rated at 500mA.
[+3] - Switched +ve out put rated at 50 0mA.
[+4] - Switched +ve out put rated at 50 0mA.
Remote keypads & LEC Outputs
Each remote keypad and TS7 00 LEC has o ne programmable out put:
[O/P] - Switched -ve outp ut rated at 100mA.
13
TS700 Instal lation Manual S ystem Installation
RelayRelay
Smo ke
Detector
Smo ke
Detector
Relay available from
RS components
P/No. 346-946.
Capable of switching
mains voltages
Relay available from
RS components
P/No. 346-946.
Capable of switching
mains voltages
+ 12 V + 12 V
Aux 12 V
Aux 0V
-ve O/P
+ve O/P
(Programmed as Alarm / Bell / etc)
(Programmed as Alarm / Bell / etc)
(Programmed as Detector Reset)
(Programmed as Detector Reset)
Aux 0V
Aux 0V
Aux 0V
+ve Outputs -ve Ou tputs
1K0 Ohm Resistor
12V Buzzer
RS Part No. 245-051
12V Buzzer
RS Part No. 245-051
1K0 Ohm Resistor
LED (Light Emiting Diode) LED (Light Emiting Diode)
-Ve O/P
-Ve O/P
-Ve O/P
+ve O/P
+ve O/P
+ve O/P
Aux 12V
Aux 12V
Aux 12V
0V 0V
Diode (IN418)Diode (IN418)

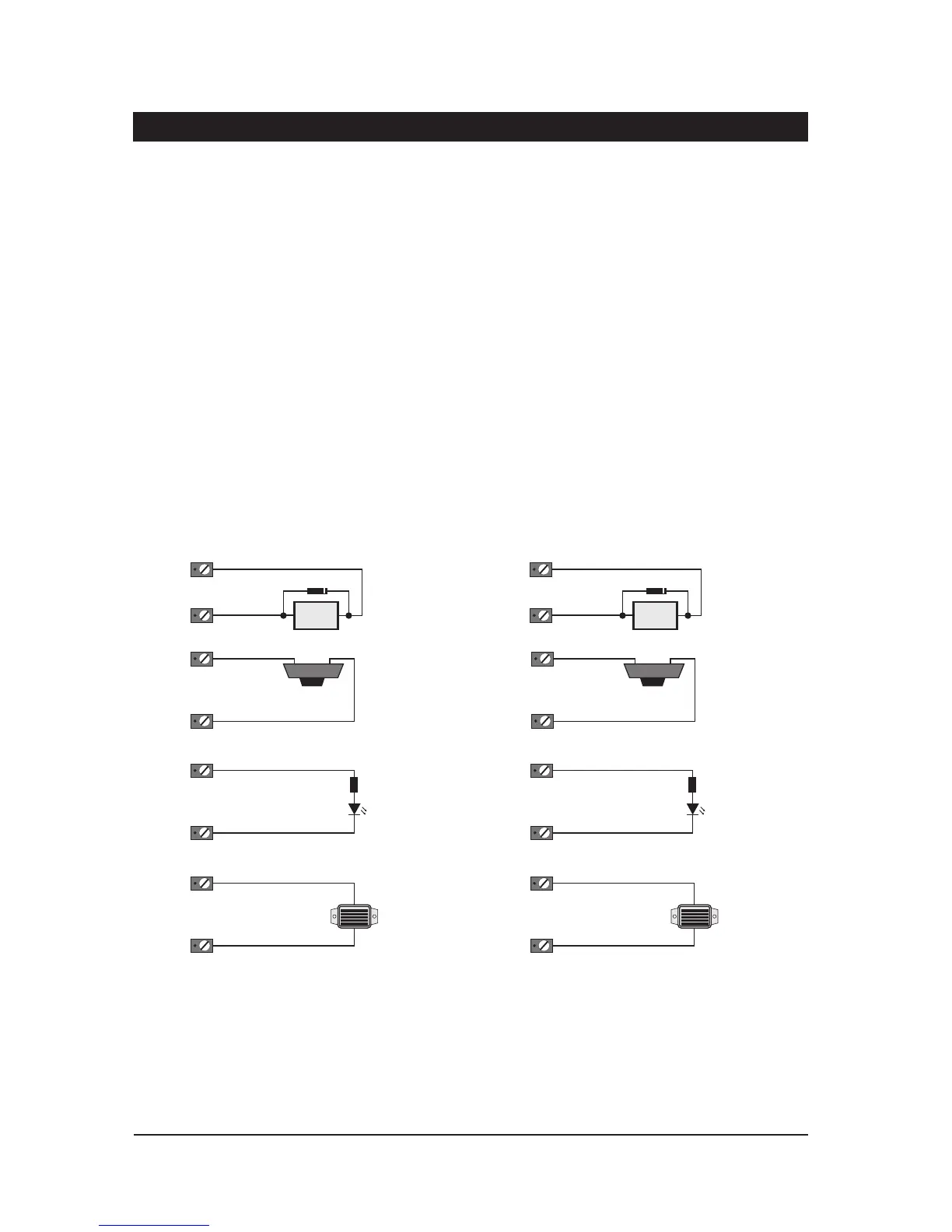

Figure 10. Programmable Outputs Wiring Examples
