Wir in g Detection Circui ts
Al ldetectioncircuitsmaybewiredas"Endofline"(EOL)or"DoublePole"(DP).Bothmethodscanbe
used on the same system.
D ouble Pole (DP)
The DP method requires the fol lowing:
●
The detector a larm and tamper contacts are connected to the zone and tamper terminals
respectively.
●
The combined alarm and tamper l oop resi stance must be less than 100 Ohms.
●
The ma ximum number of detection devices allowed in a circuit is ten.
●
Normally open devices such as pressure pads and exit terminator buttons are connected
between the zo ne and tamper terminals.
●
If the detect ion circuit is not used links can be fitted across the zone and tamper loop s or
programmed as No t Used.
End Of Line (EOL)
The EOL method requires the following:
● The detector alarm contacts must have a 4K7 shunt resistor fitted.
●
A2K2 End ofLine (EOL)resistor must befitted at the point in the circuitfurthest from thecontrol
panel.
● Loop resistanc e with the EOL resistor shorted must be l ess than 100 Ohms.
● The ma ximum number of detection devices allowed in a circuit is ten.
● Normally open devices such as pressure pads and exit terminator buttons are connected
across outer terminals
●
If the detect ion circuit is not used links can be fitted across the zone and tamper loop s or
programmed as No t Used.
7
TS700 Instal lation Manual S ystem Installation
Alarm
Tamper
CIRCUIT A
ZA
TA
CIRCUIT A
ZA
TA
CIRCUIT A
ZA
TA
Alarm
Tamper
Max. 10 devices per circuit
Wiring N.O. devices (Exit Terminators)
Alarm
Tamper
500 meters or 100 Ohms
500 meters or 100 Ohms
Alarm
Alarm
Tamper
Max. 10 devices per circuit
Wiring N.O. devices (Exit Terminators)
Tamper
4K7 = Yellow, Violet, Red
2K2 = Red, Red, Red
Alarm
Tamper
4K7
4K7
4K7
2K2
2K2
2K2
CIRCUIT B
ZB
TB
CIRCUIT B
ZB
TB
CIRCUIT B
ZB
TB

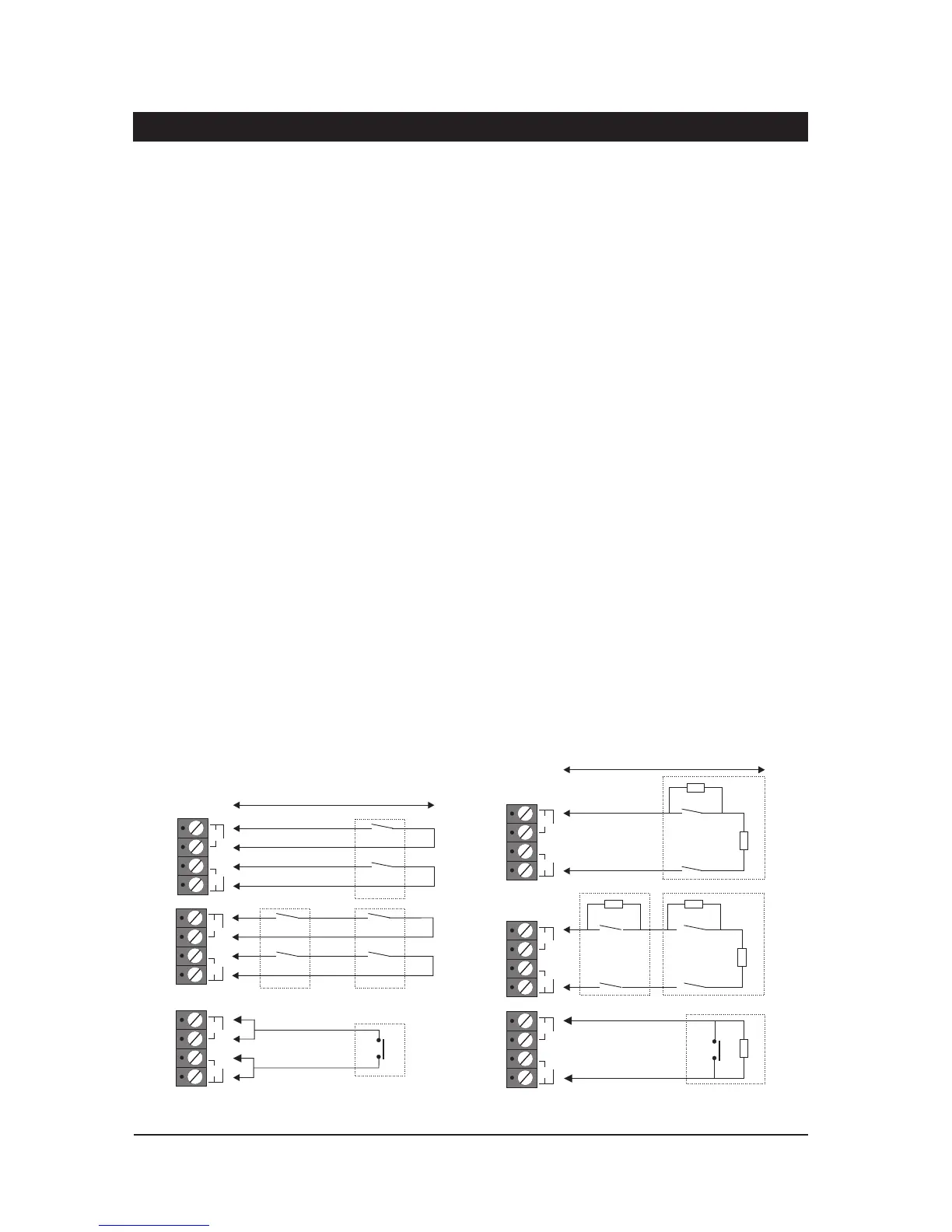

Figure 3. DP and EOL Ci rcuit Connections
