CHARGING AND STARTING SYSTEM
Page 2B-32 90-828631R3 MARCH 1999
Reassembly
1. Lubricate helix threads and drive end cap bushing with SAE 10W oil.
2. Install the pinion, spring, and pinion stopper onto starter shaft.
3. Place circlip into groove on shaft.
4. Press the pinion stopper over the circlip.
IMPORTANT: Install new circlip for reassembly.
NOTE: Make sure the circlip fits tightly into pinion stopper.
a
b
d
c
d
c
a
b

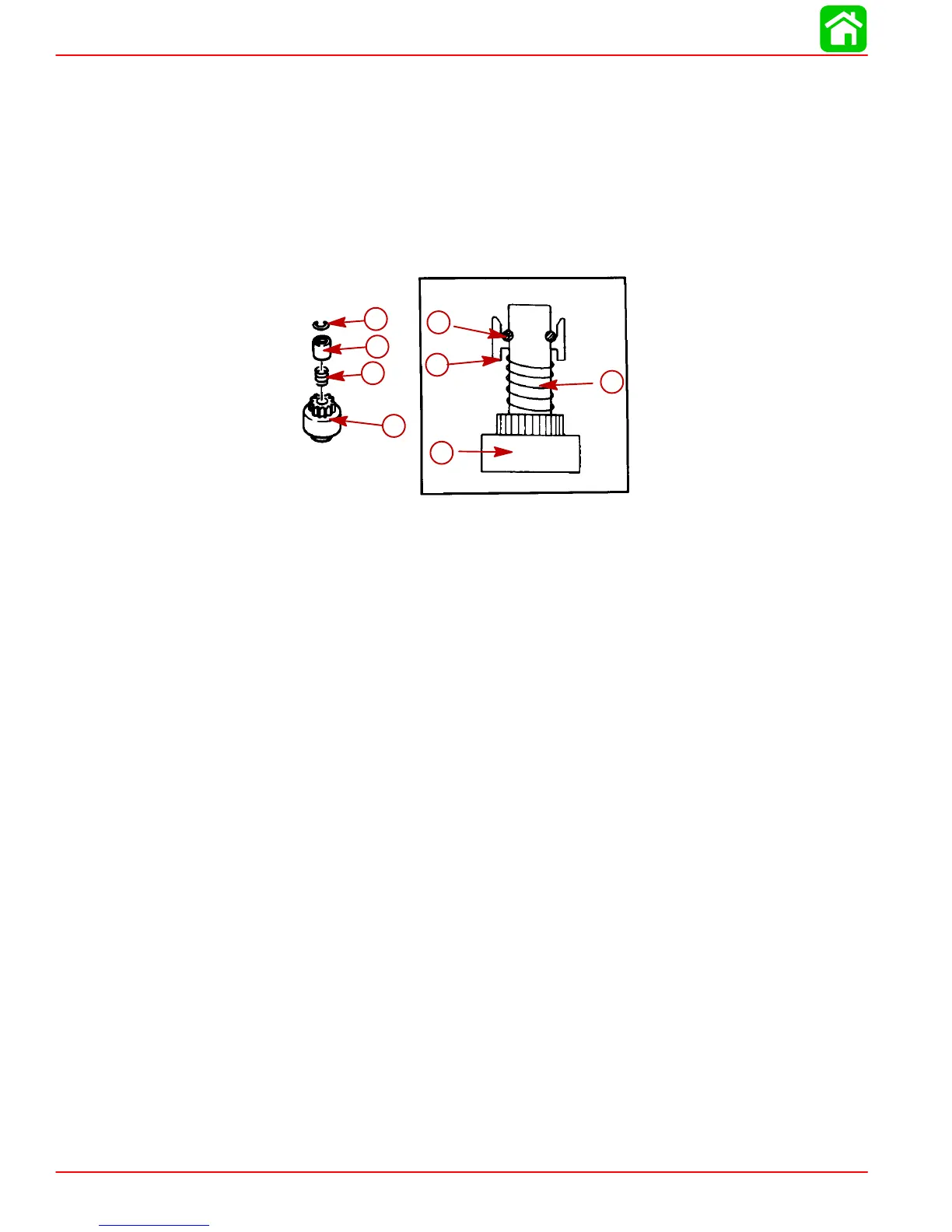

a-Circlip
b-Pinion Stopper
c-Spring
d-Pinion
