POWER TRIM
90-828631R3 MARCH 1999 Page 5C-41
Power Trim Reassembly
IMPORTANT: Lubricate all O-rings with Quicksilver Power Trim Fluid (92-90100A12).
If not available, use automotive (ATF) automatic transmission fluid.
Shock Rod Reassembly

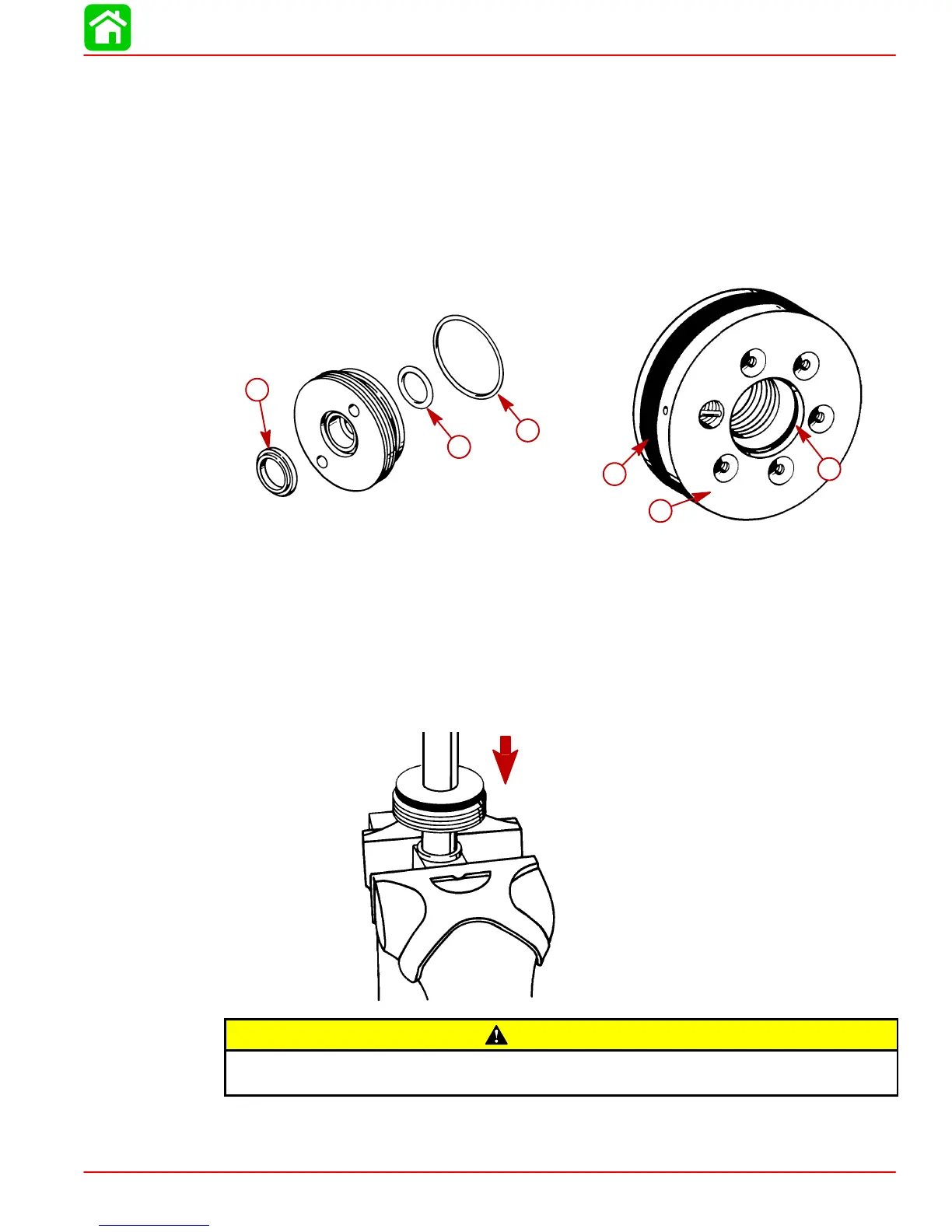

1. Install lubricated O-rings to end cap.
2. Install rod wiper.
3. Install lubricated O-rings to shock piston.
51199
f
d
e
a
b
c
51145
a-Rod Wiper
b-Inner O-ring
c-Outer O-ring
d-Shock Piston
e-O-ring
f-O-ring
4. Clamp shock rod in soft jawed vise.
5. Position cylinder end cap onto rod as shown.
51146
CAUTION
When installing shock rod piston, spanner wrench must have1/4 in. x 5/16 in.
(6.4mm x 8mm) long pegs to avoid damage to shock rod piston.
6. Apply Loctite Grade “A” (271) to threads on shock rod.
7. Install shock rod piston.
