Mercury 50 Service Manual

BIGFOOT GEAR HOUSING
Page 6B-16 90-828631R3 MARCH 1999

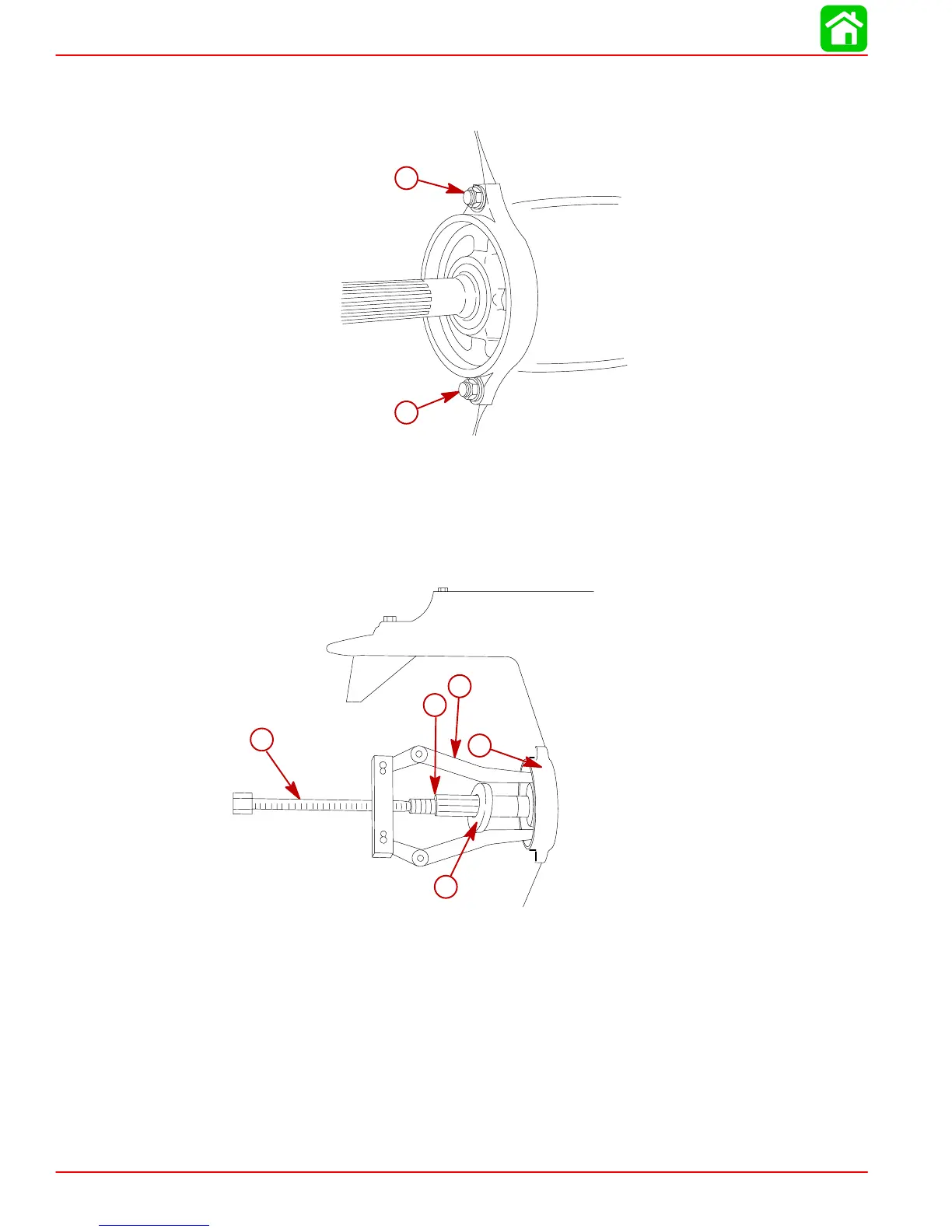

Bearing Carrier and Propeller Shaft
1. Remove fasteners.
51117
a
a
a-Fasteners
2. With propeller shaft horizontal, pull carrier to break seal with gear housing. Remove
bearing carrier/propeller shaft components as an assembly, taking care not to lose cam
follower or 3 metal balls in end of propeller shaft.
3. Remove propeller shaft from bearing carrier.
51116
a
b
c
d
e
a-Bearing Carrier
b-Puller Jaws (91-46086A1)
c-Puller Bolt (91-85716)
d-Thrust Hub
e-Propeller Shaft

Mercury 50 Specifications

General

Horsepower	50 hp
Cylinders	3
Steering	Remote
Starting	Electric
Displacement	995 cc
Fuel Induction System	EFI (Electronic Fuel Injection)
Alternator Output	18 amp
Shaft Length	20" / 508 mm
Dry Weight	112 kg
Engine Type	4-Stroke
