CARBURETOR
90-828631R3 MARCH 1999 Page 3B-31

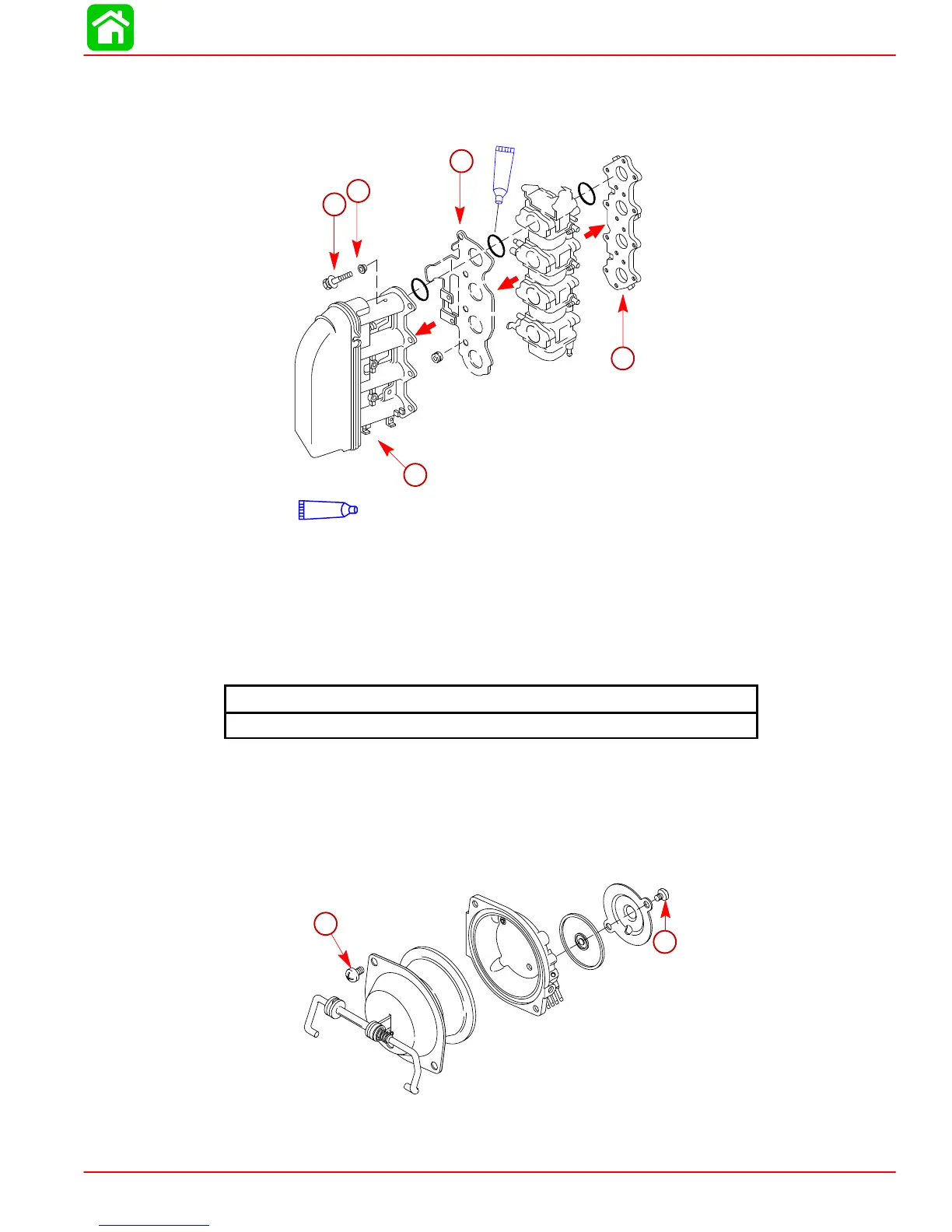

Silencer Installation
1. Install plate, silencer, and retaining plate. Install bolts and collars.
53679
95
95
2-4-C With Teflon (92-825407A12)
a
b
c
d
e
NOTE: Dowel pins must match between carb. flange and retaining plate.
a-Bolt w/Washer-M6x90mm (8)
b-Collar (8)
c-Silencer
d-Retaining Plate
e-Plate
Bolt Torque
50 lb-in. (5.7 Nm)
Acceleration Pump
Assembly
1. Install screws.
53752
b
a
a-Cover Screw (2)
b-Diaphragm Screw (2)
