IGNITION
Page 2A-26 90-828631R3 MARCH 1999
Trigger Coil Removal and Installation

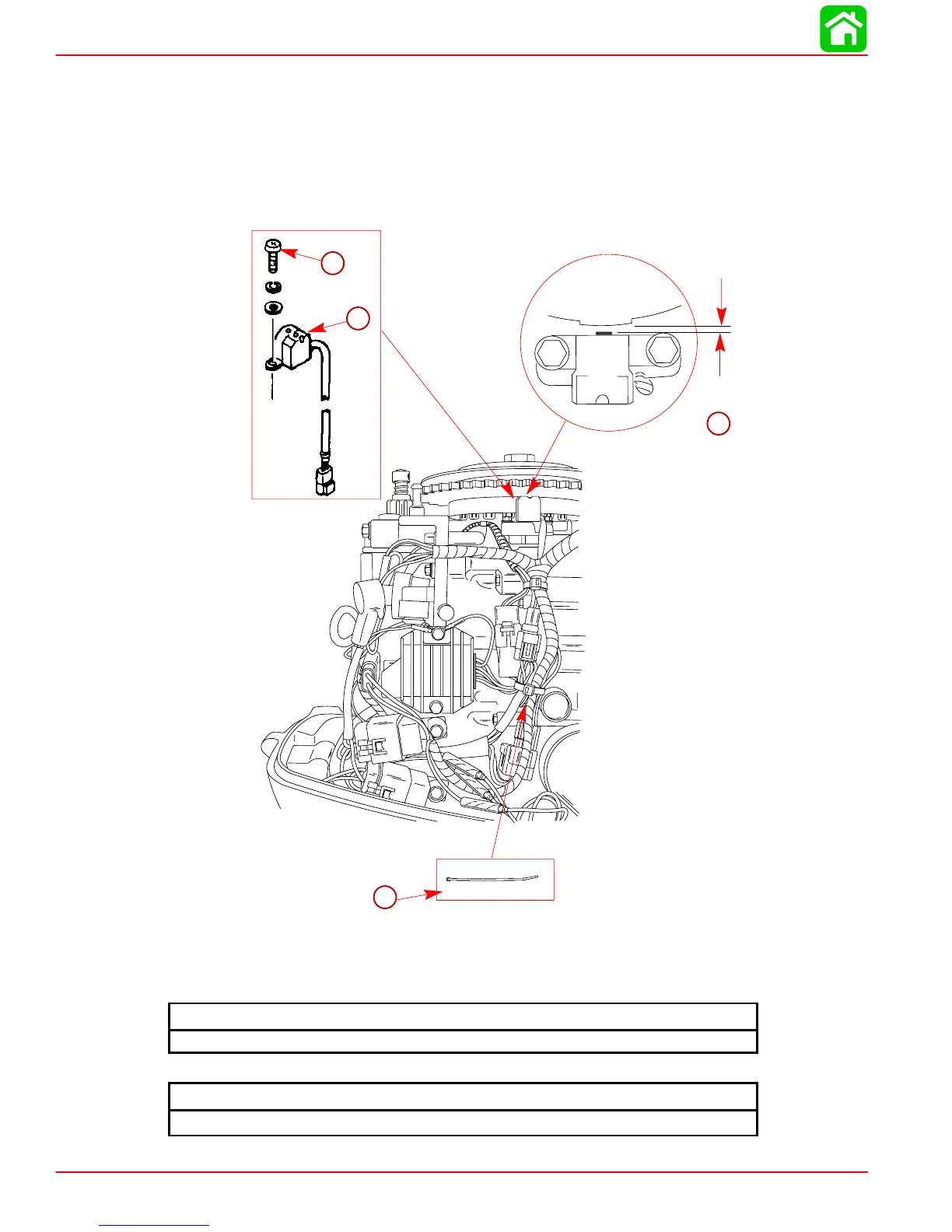

1. Remove and install the trigger coil as shown.
2. Fasten wiring together with sta-strap.
3. Set the air gap at .030 in. (0.77 mm) between the trigger and flywheel.
4. Refer to Section 2 Part D for wiring diagrams.
.030 in.
(0.77 mm)
55625
d
b
a
c
a-Trigger Coil
b-Screw (2)
c-Sta-Strap
d-Air Gap .030 in. (0.77 mm)
Air Gap Between Trigger and Flywheel
.030 in. (0.77 mm)
Screw Torque
45 lb-in. (5.1 Nm)
