POWER TRIM
90-828631R3 MARCH 1999 Page 5B-47

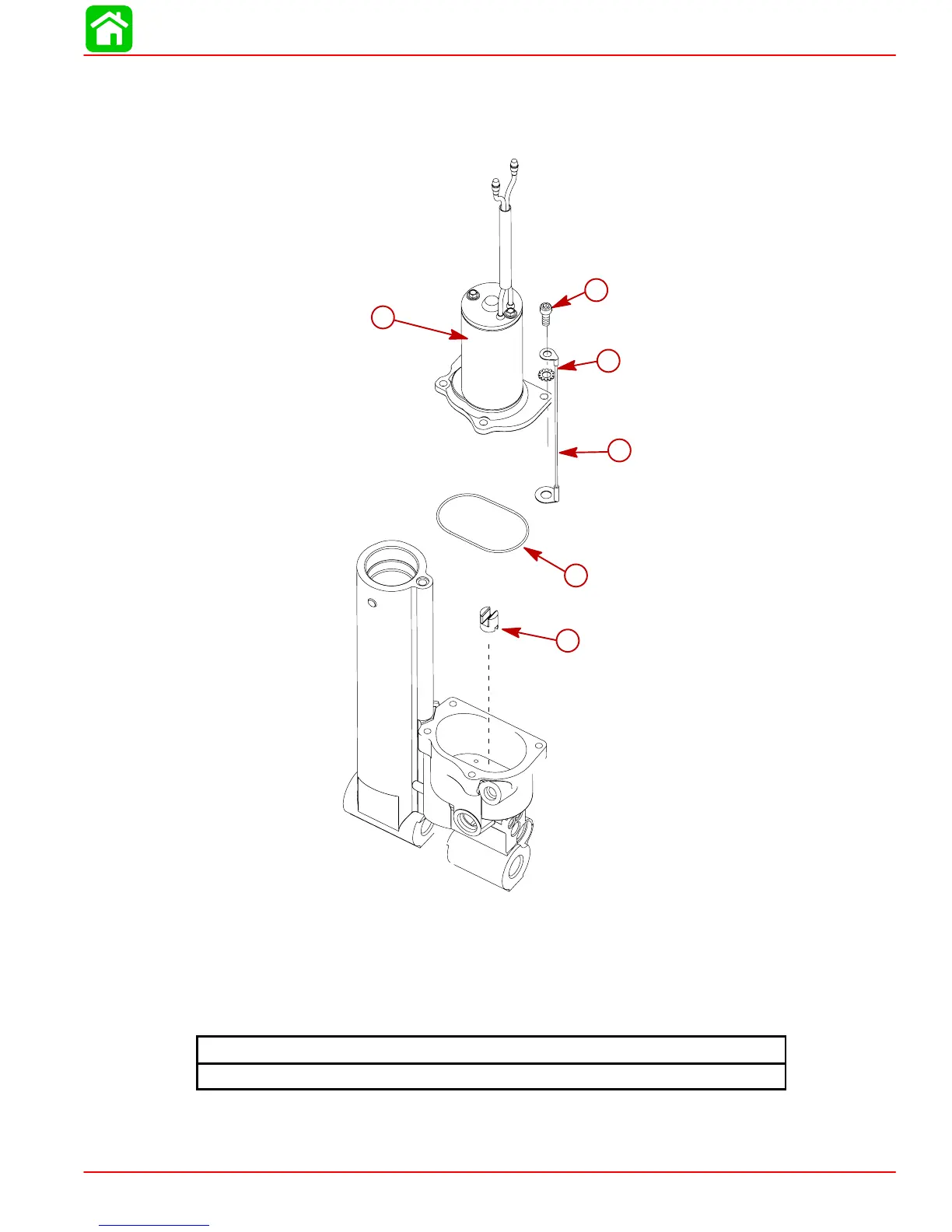

Trim Motor Reassembly
1. Align coupler between oil pump and motor.
2. Install trim motor and secure with four (4) screws. Torque screws to specified torque.
c
f
e
d
b
a
a
b
c
d
e
f
a-Coupler
b-O-ring
c-Trim Pump Motor
d-Ground Strap
e-Lock Washer (1)
f-Screws (4)
Screw Torque
80 lb-in. (9.0 Nm)
