BIGFOOT GEAR HOUSING
90-828631R3 MARCH 1999 Page 6B-39
Propeller Shaft Reassembly

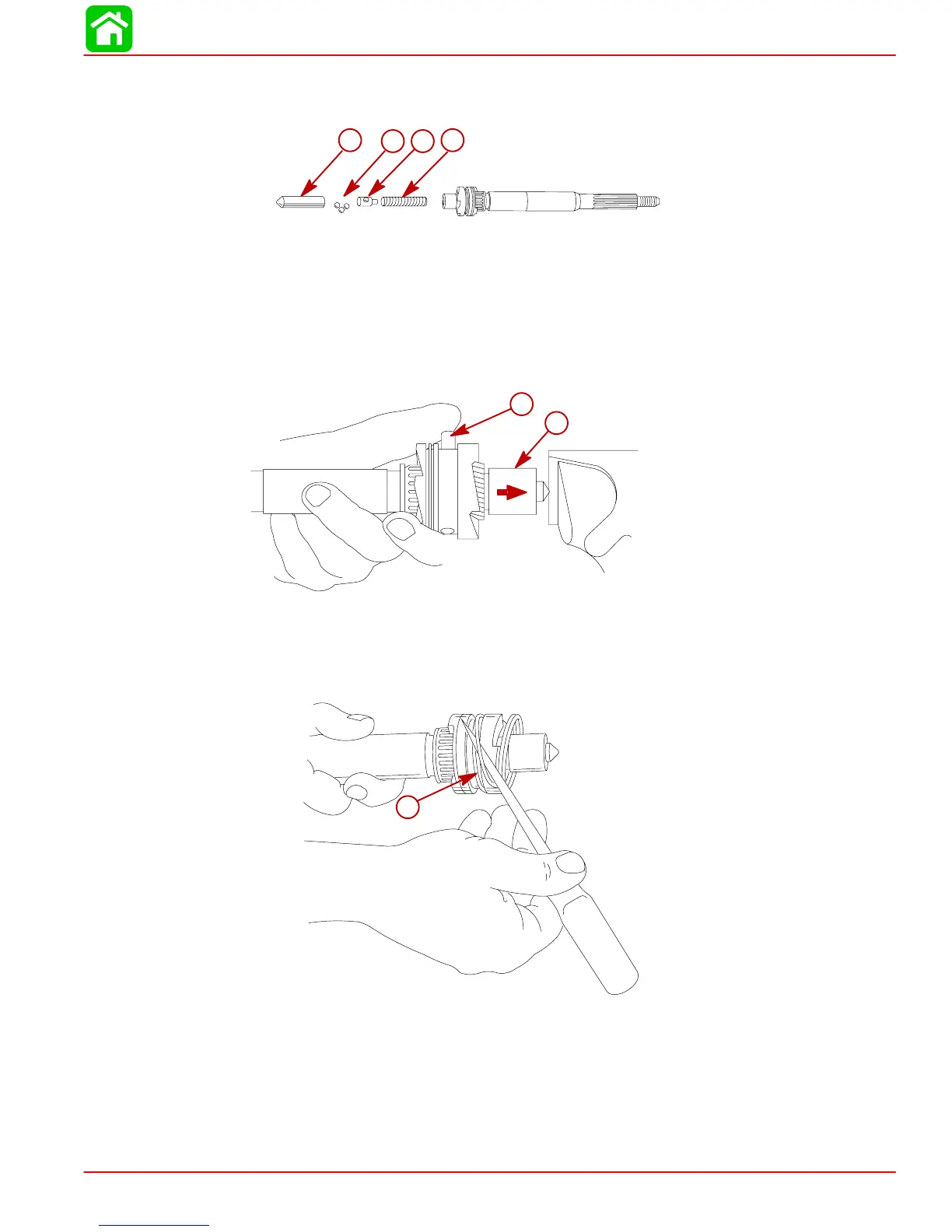

1. Install components into propeller shaft in sequence shown.
19154
a
b
cd
a-Spring
b-Guide Block
c-3 Metal Balls*
d-Cam Follower*
*Hold in Place With Quicksilver 2-4-C w/Teflon
2. Install cross pin.
51800
a
b
a-Apply Pressure in This Direction
b-Cross Pin
3. Install spring. DO NOT overlap springs.
51876
a
a-Spring
