FUEL PUMP
Page 3A-10 90-828631R3 MARCH 1999
Fuel Pump Installation
1. Secure fuel pump and cowl deflector to cylinder head cover with 2 bolts.
2. Connect fuel lines to pump and secure with sta-straps.
d
e
d
out
out
in
c
a
b
c
e
f

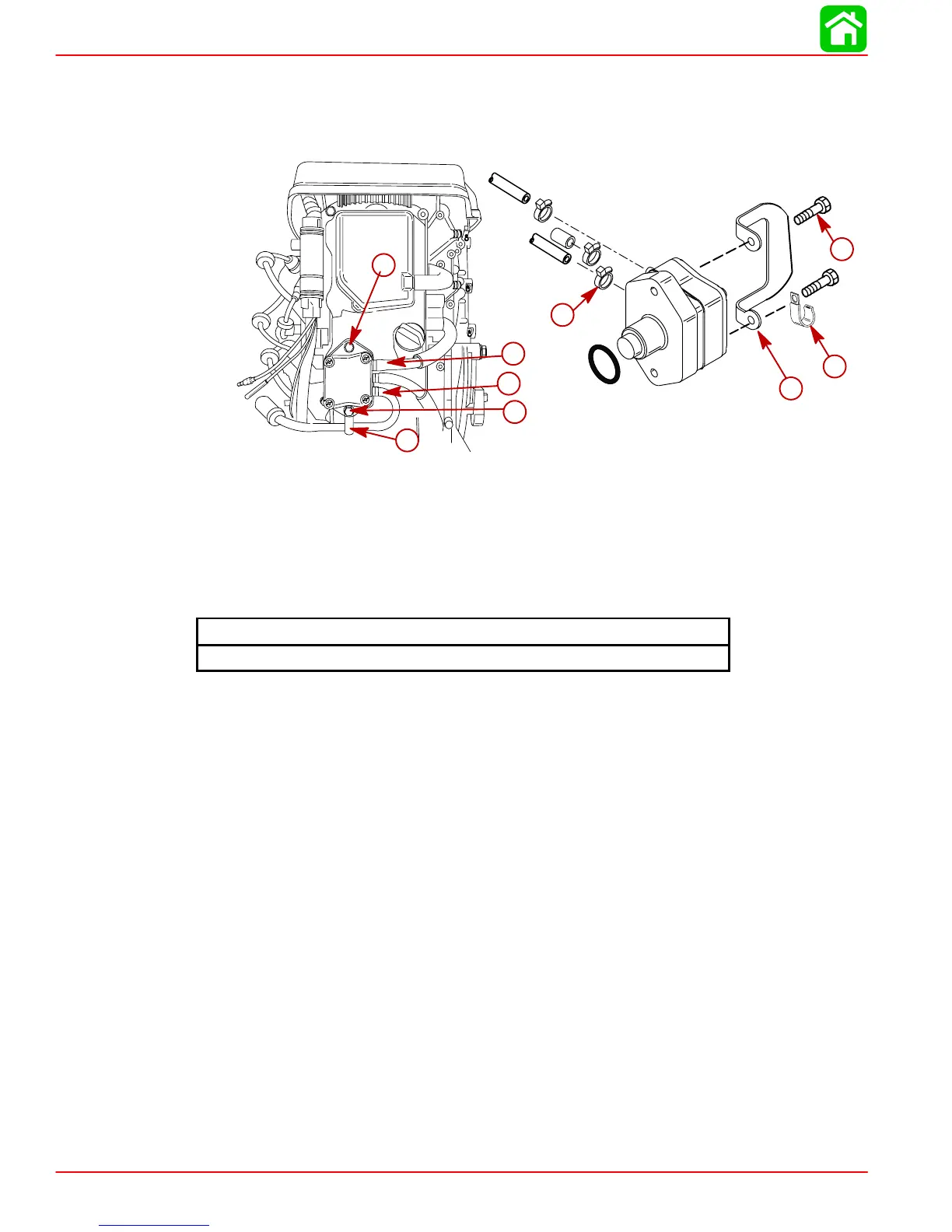

a-Outlet Fuel Hose
b-Inlet Fuel Hose
c-Mounting Bolts (2)-M6x30
d-Cowl Deflector
e-J-Clip
f-Cable Ties (3)
Fuel Pump Mounting Bolt Torque
75 lb-in. (8.5 Nm)
