CARBURETOR
90-828631R3 MARCH 1999 Page 3B-37

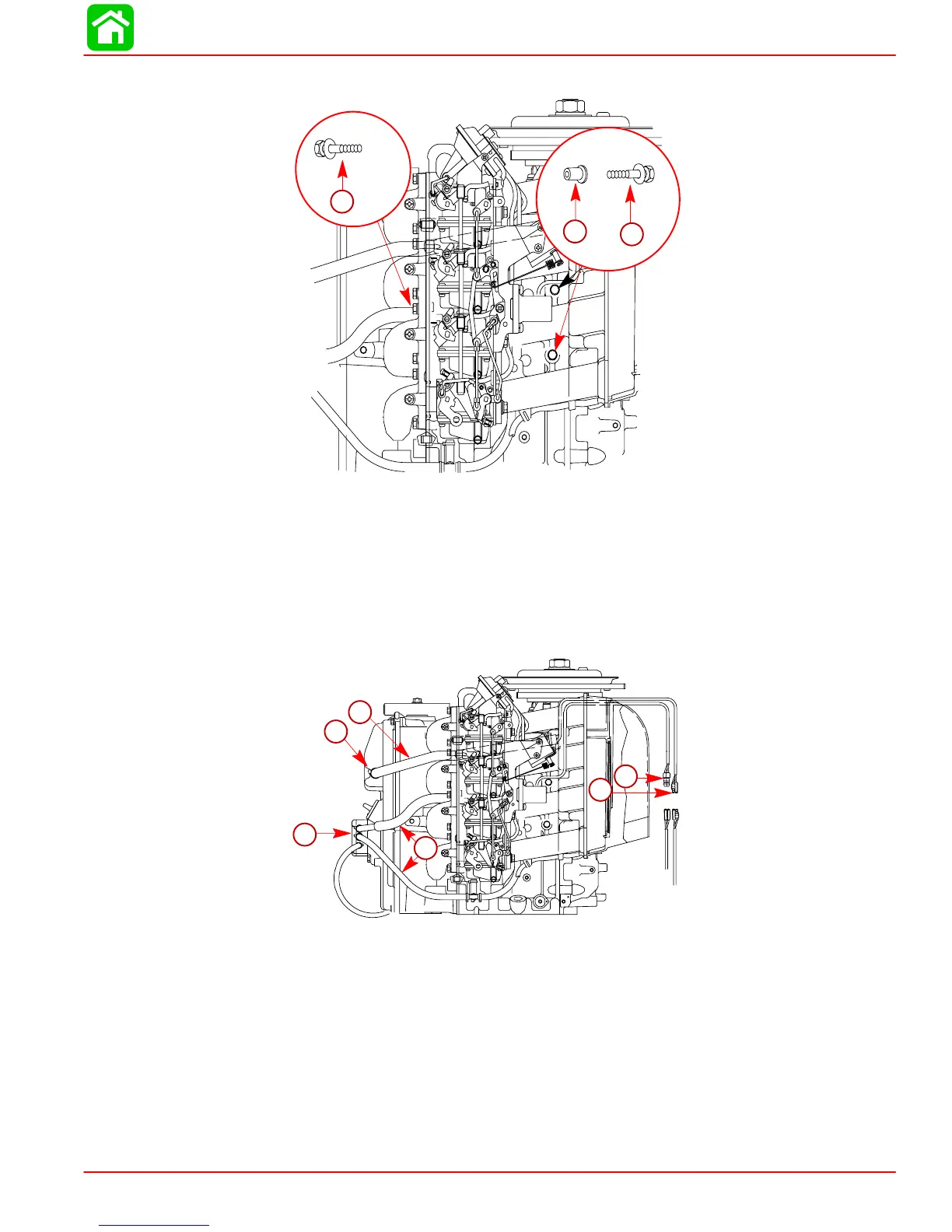

4. Install bolts and collars.
28378
c
b
a
a-Bolt w/Washer-M6x30mm (2)
b-Collar (2)
c-Mounting Bolt w/Washer-M6x25mm (8)
5. Connect solenoid and plunger leads.
6. Connect fuel lines and breather hose.
7. Install sta-straps.
28378
a
b
c
d
e
a
a-Sta-Straps (3)
b-Breather Hose
c-Fuel Lines (2)
d-Solenoid Leads (Blue, Black)
e-Plunger Leads (Green/White, Black)
