CYLINDER HEAD
Page 4A-10 90-828631R3 MARCH 1999
Valve Clearance Adjustment
NOTE: Valves should be adjusted when engine is cold.
WARNING
Engine could possibly start when turning flywheel during adjustment. To prevent
this type of accidental engine starting and possible serious injury, always remove
spark plug leads from spark plugs.

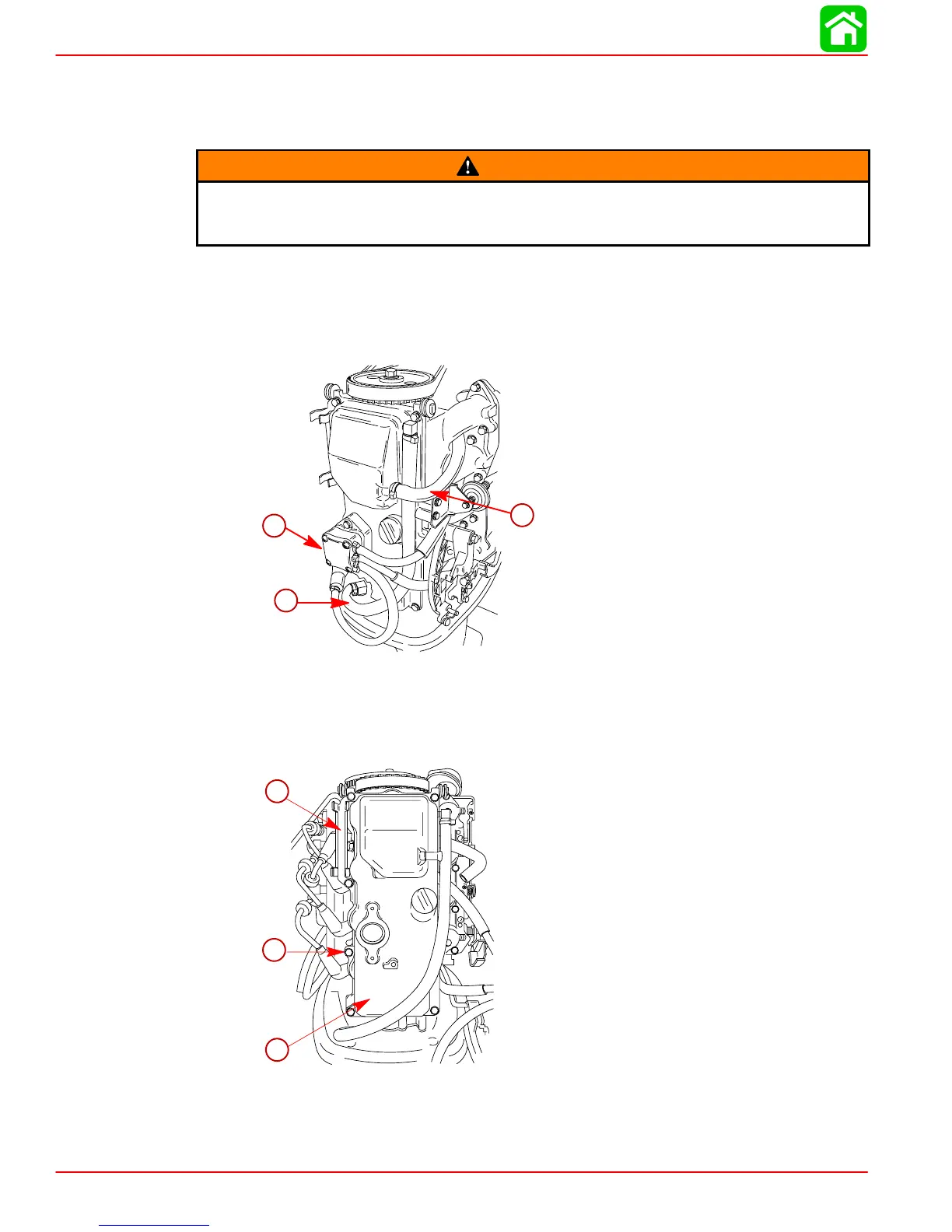

Cylinder Head Cover Removal
1. Disconnect the breather hose and vent hose.
2. Remove fuel pump assembly.
53726
b
a
c
a-Fuel Pump Assembly
b-Vent Hose
c-Breather Hose
3. Remove cylinder head cover.
53734
b
c
a
a-Cylinder Head Cover
b-Bolts (7)
c-Harness Retainer
To Next Page
