CYLINDER HEAD
90-828631R3 MARCH 1999 Page 4A-17
Timing Belt Installation
Timing Belt Installation Notes:
•
Protect the timing belt from water and oil.
•
Use care not to scratch the belt.
•
Do not use any metal device to help stretch the belt onto the driven gear.

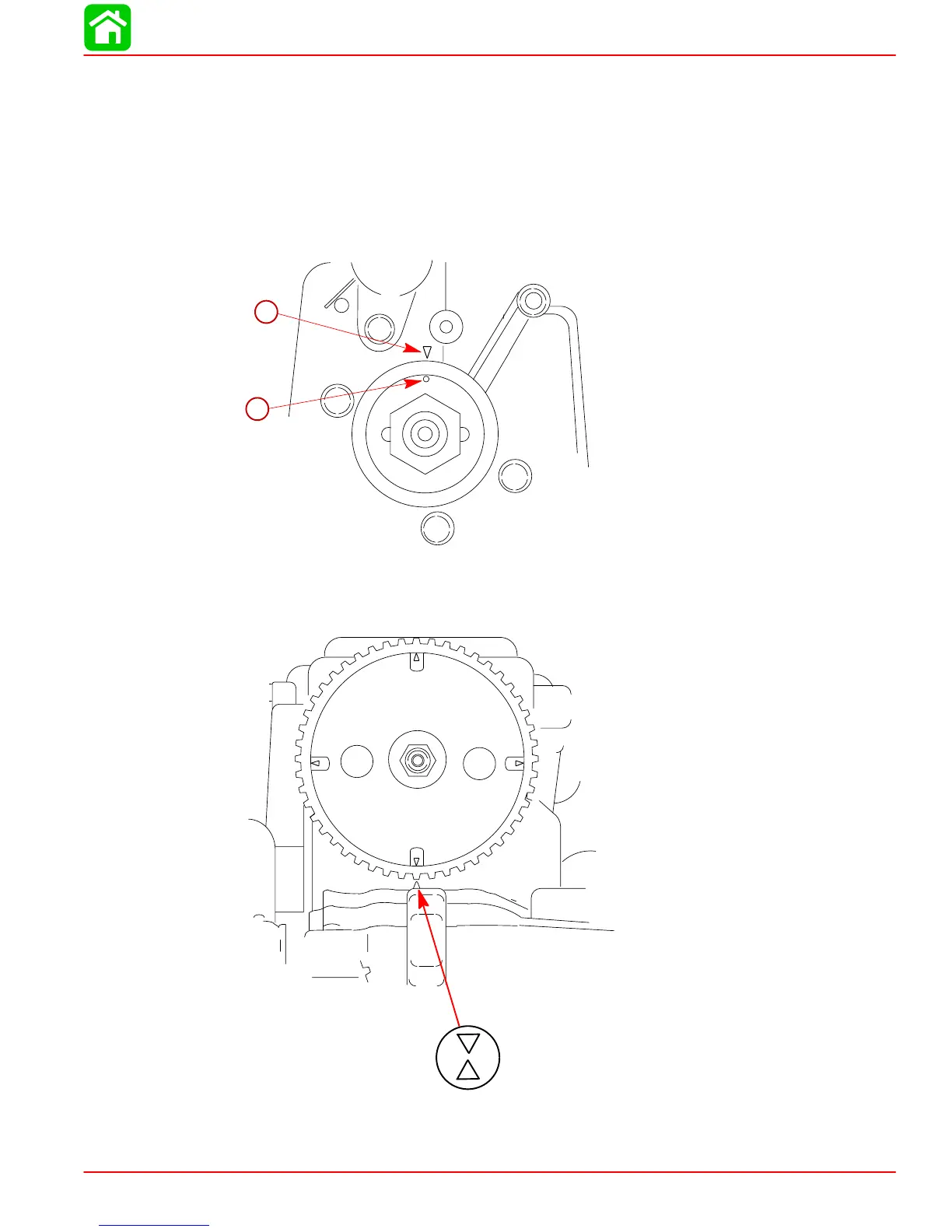

1. Align drive gear mark with cylinder mark.
30033
a
b
a-Drive Gear Mark
b-Cylinder Mark
2. Align the “1” mark on the driven gear with the cylinder head mark “
”.
30033
3
1
2
4
