5. Reinstall stator with three bolts.

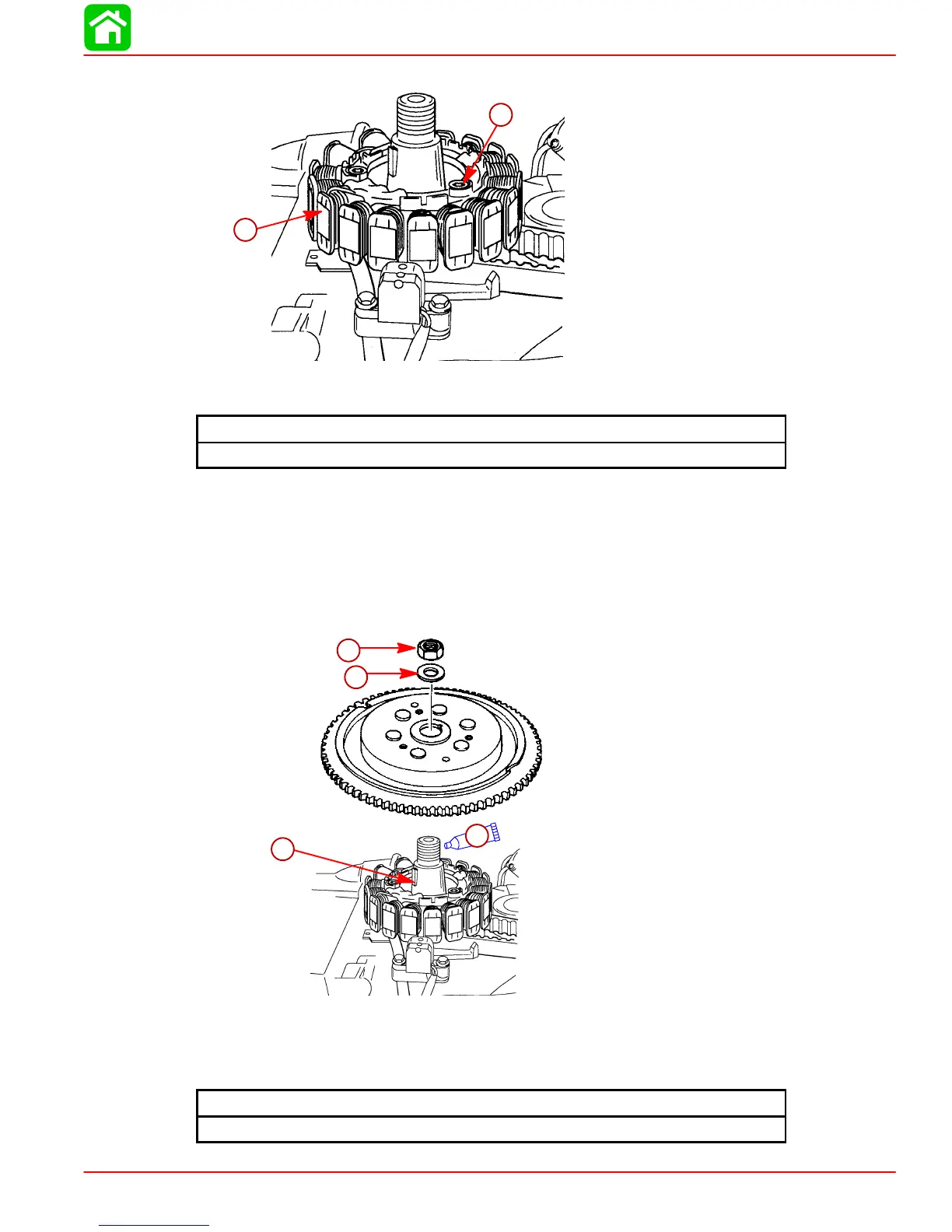

53745
a
b
a-Stator
b-Mounting Bolts (3) Apply Loctite 222 to Threads
Stator Bolt Torque
75 lb-in. (8.5 Nm)
6. Place flywheel key into slot.
7. Install flywheel.
8. Hold flywheel using flywheel holder (91-83163M). Apply oil to threads on crankshaft.
Tighten nut to the specified torque.
FLYWHEEL WITHOUT LOAD RING & SPACER
53278
a
b
c
d
a-Flywheel Key
b-Washer
c-Nut
d-Apply Oil to Threads
Flywheel Nut Torque
116 lb-ft (157 Nm)
