CYLINDER HEAD
90-828631R3 MARCH 1999 Page 4A-21

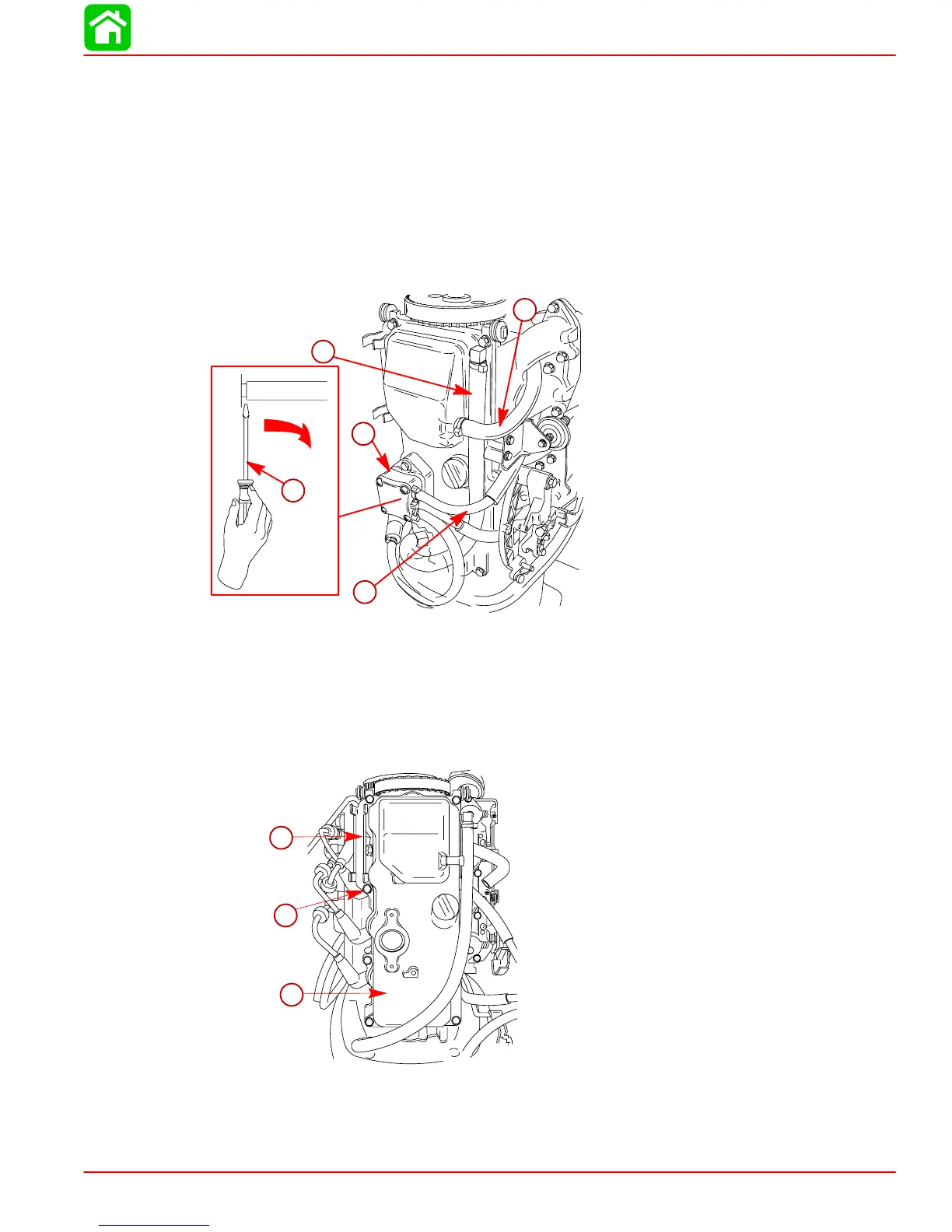

Cylinder Head Disassembly
Cylinder Head Cover Removal
1. Disconnect the breather hose and vent hose from the cylinder head cover.
IMPORTANT: The hose fittings on the fuel pump can break if you try twisting or pull-
ing off the hoses. Remove hoses by slowly prying off the hoses using a small screw-
driver.
2. Disconnect the top fuel hose from the fuel pump.
3. Remove fuel pump.
53726
a
b
c
e
d
a-Fuel Pump
b-Pry Fuel Hoses Off Fuel Pump. DO NOT Twist or Pull Hoses
c-Top Fuel Hose
d-Breather Hose
e-Vent Hose
4. Remove cylinder head cover.
53734
a
b
c
a-Cover
b-Bolts (7)
c-Harness Retainer
