CYLINDER HEAD
Page 4A-26 90-828631R3 MARCH 1999

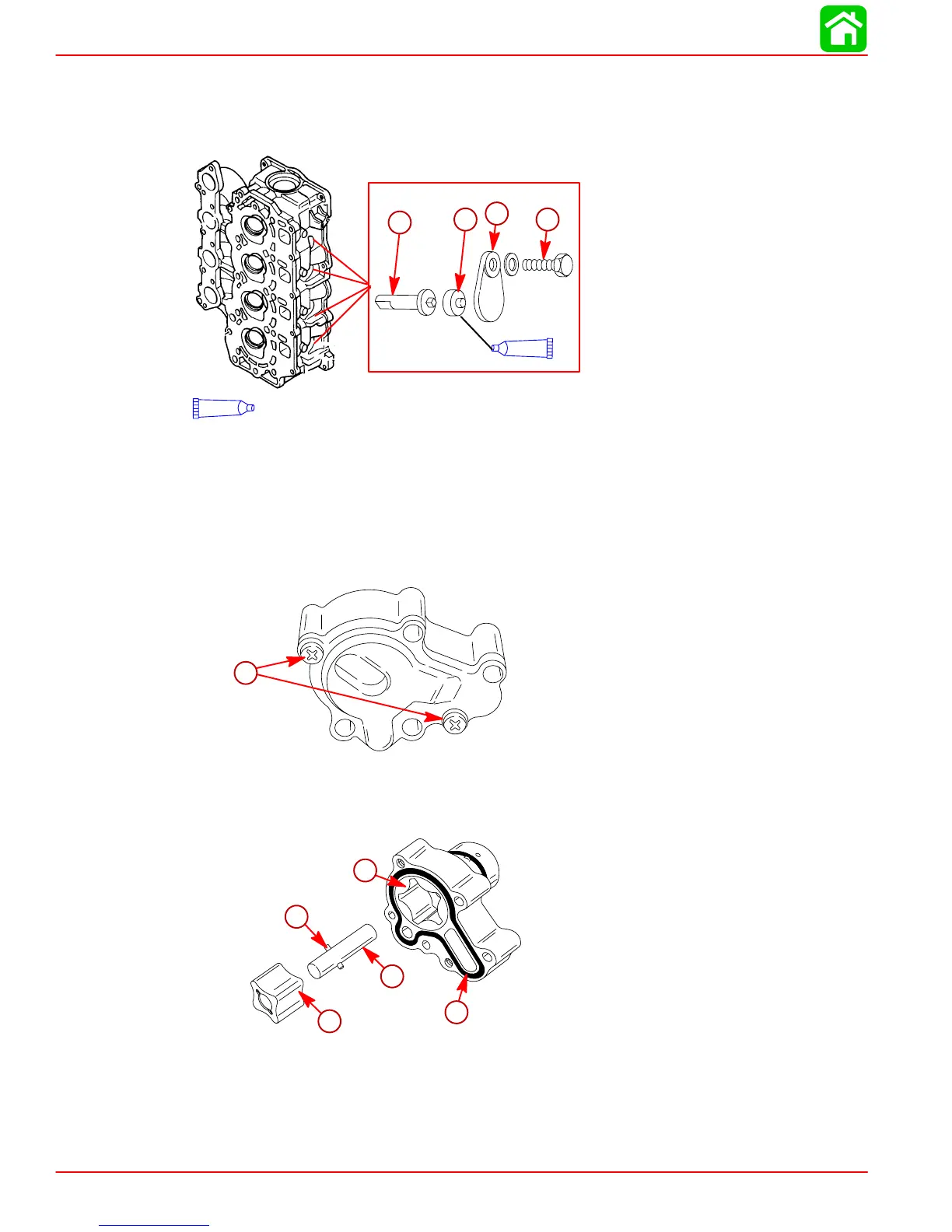

Anode Removal
1. Check condition of the anodes. Replace, if anodes show sign of deterioration.
NOTE: If anodes are not deteriorated, wire brush corrosion off before installation.
b
a
c
d
95
2-4-C w/Teflon (92-850736A1)
95
a-Anode Cover
b-Bolt
c-Rubber Seal
d-Anode
Oil Pump Disassembly
1. Heat screws to loosen Loctite sealant. Remove screws.
53731
a
a-Screw (2) Heat Screws to Loosen Loctite Sealant.
2. Disassemble Oil Pump.
53741
c
e
d
b
a
a-Cover Seal
b-Outer Rotor
c-Inner Rotor
d-Shaft
e-Cross Pin
