CYLINDER HEAD
Page 4A-36 90-828631R3 MARCH 1999
INSTALLING VALVES
1. Always use new valve seals.
2. Apply engine oil to the valves and valve seats.
3. Install valves as shown.
53735
a
b
c
91-809494A1

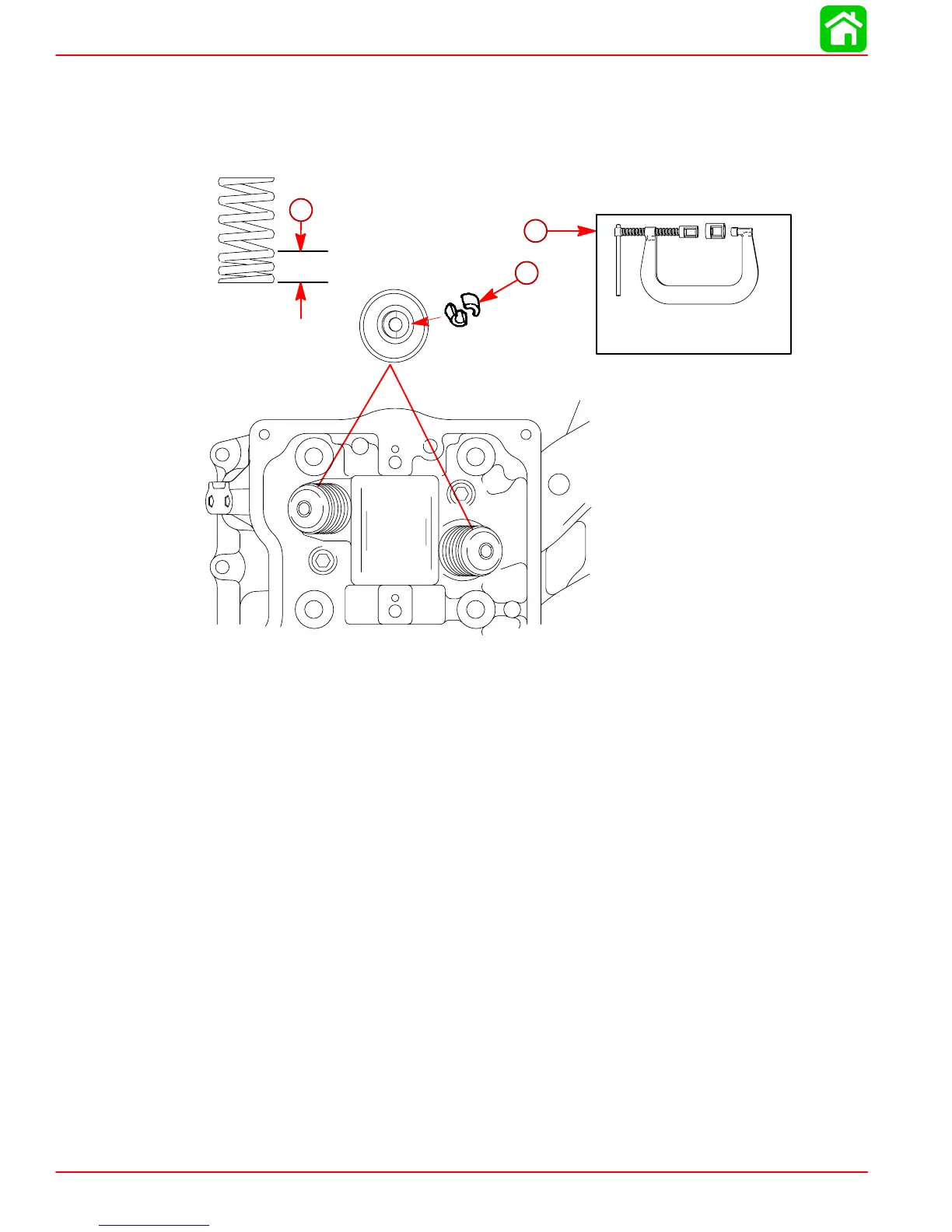

a-End of the Valve Spring with the Pre-Compressed Coils gets Installed Towards
the Cylinder Head
b-Use Spring Compressor Tool to Compress the Springs for Installation
c-Compress the Spring and Retainer and Install the Valve Keepers Around the
Valve Stem. You May have to Tap Lightly on End of Valve to Seat the Keepers
