CYLINDER BLOCK/CRANKCASE
Page 4B-12 90-828631R3 MARCH 1999

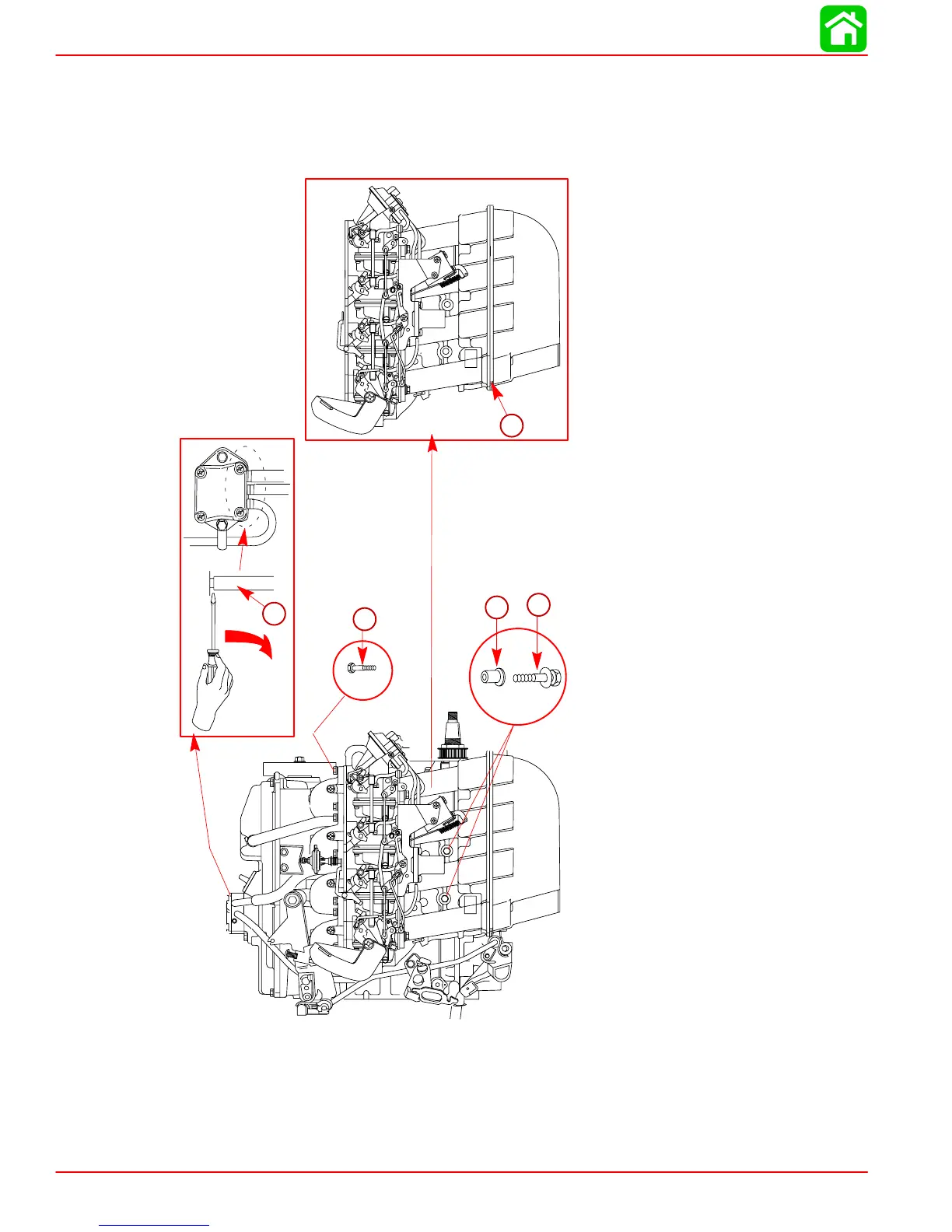

3. Remove 8 flange bolts and 2 side mounting bolts and lift carburetor assembly from pow-
erhead. Disconnect hoses and wiring as necessary.
IMPORTANT: The hose fittings on the fuel pump can break if you try twisting or pull-
ing off the hoses. Remove hoses by slowly prying off the hoses using a small screw-
driver.
out
out
in
d
e
c
b
a
a-Carburetor Assembly
b-Pry Fuel Hoses Off Fuel Pump. DO NOT Twist or Pull Hoses
c-Flange Bolts (8)
d-Side Mounting Bolts (2)
e-Collar (2)
