CYLINDER BLOCK/CRANKCASE
Page 4B-3390-828631R3 MARCH 1999

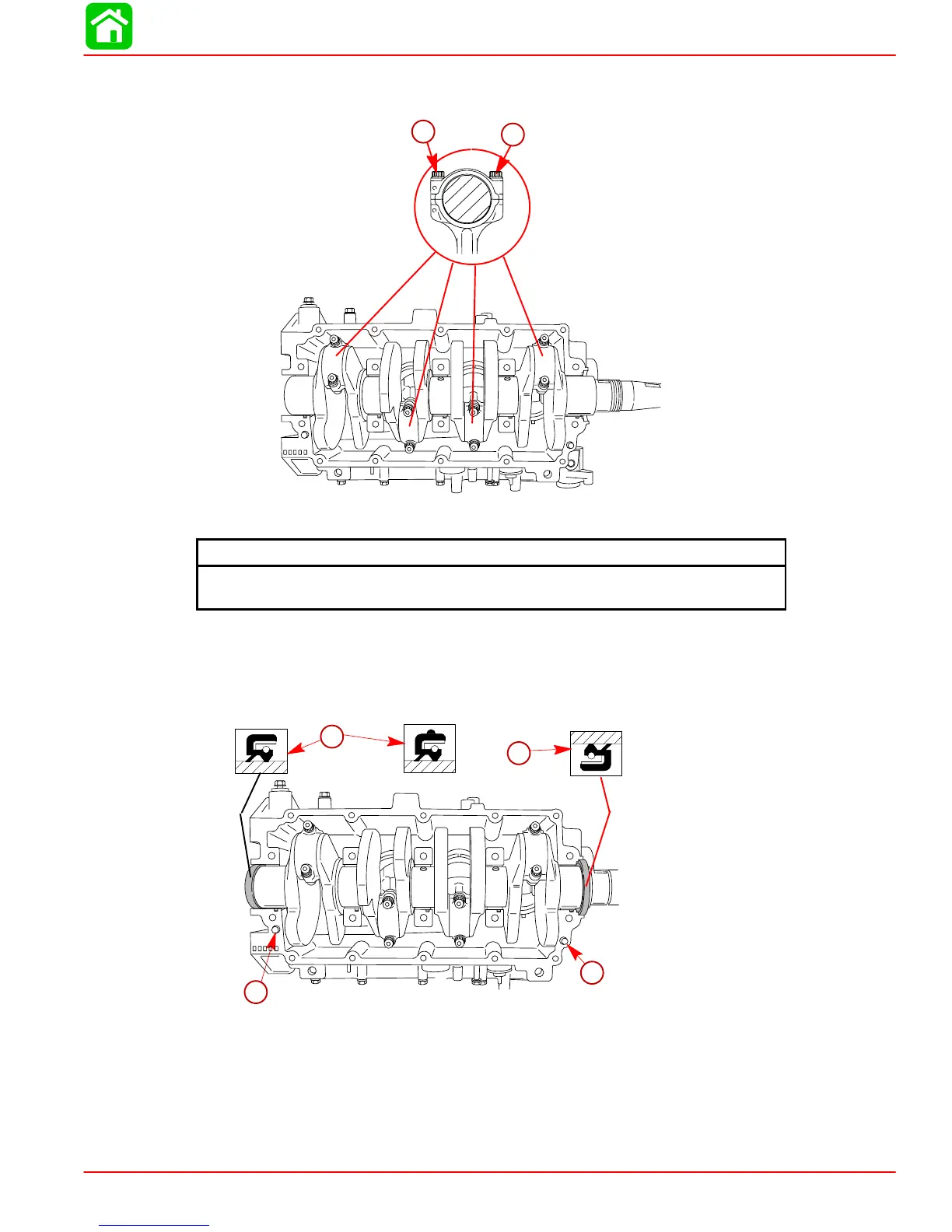

5. Apply oil to the connecting rod bolts. Tighten bolts in sequence and in two steps to the
specified torque.
53823
a
a
a-Apply Oil to Bolt Threads
Connecting Rod Bolt Torque
1st: 53 lb-in. (6 Nm)
2nd: 150 lb-in. (17 Nm)
6. Lubricate the oil seals lips with oil.
7. Install upper and lower oil seals. Position oil seal lips as shown.
8. If removed, install dowel pins.
53824
a
c
b
a
a-Dowel Pin (2)
b-Upper Oil Seal
c-Lower Oil Seal (Flat) or (Raised Rib)
