Mercury 50

CYLINDER BLOCK/CRANKCASE
Page 4B-42 90-828631R3 MARCH 1999

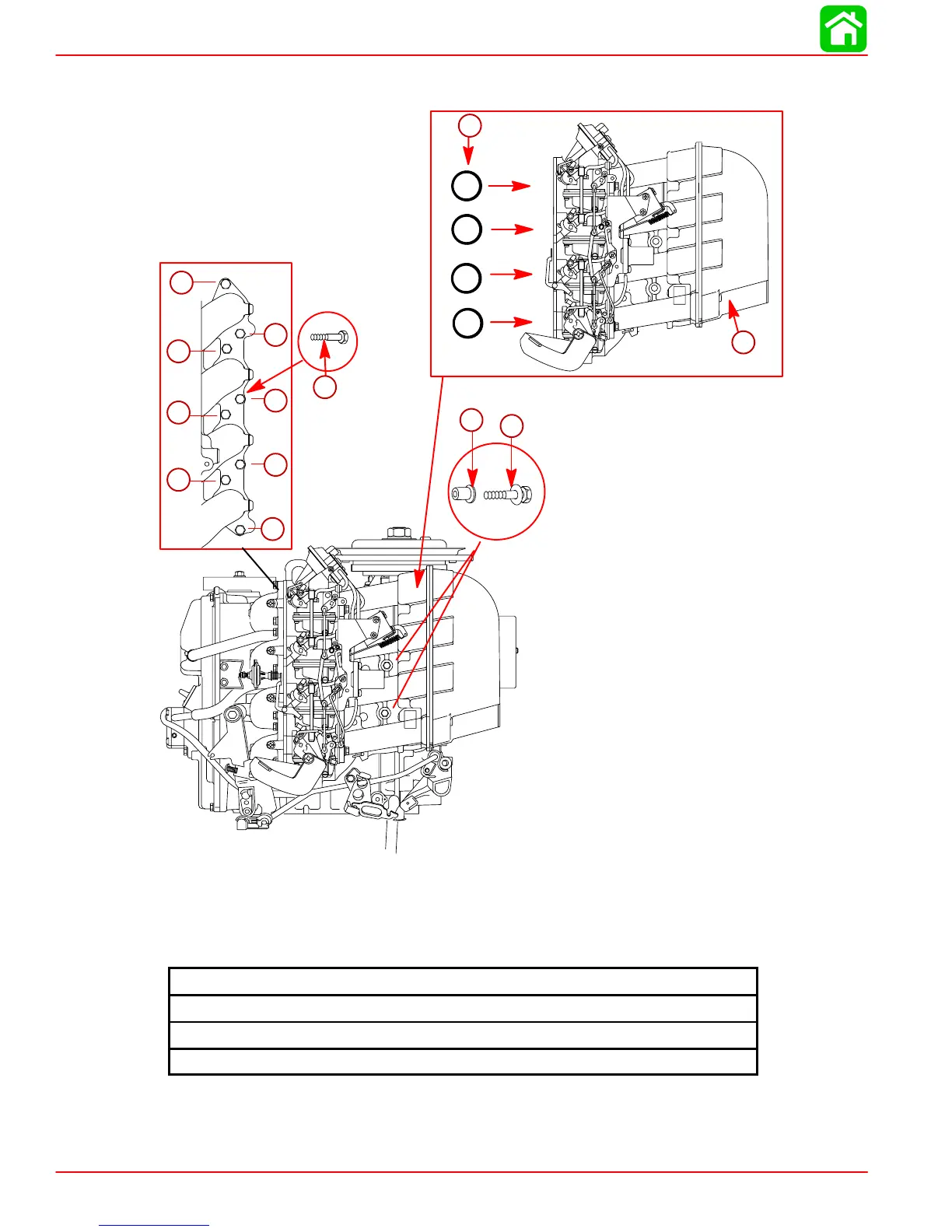

12. Reinstall carburetor assembly with 8 flange bolts and 2 side mounting bolts. Tighten
bolts to the specified torque.
c
e
d
a
b
8
4
2
6
7
5
1
3
a-Carburetor Assembly
b-O-Ring Flange Seals (4)
c-Flange Bolts (8)
d-Side Mounting Bolts (2)
e-Collar (2)
Flange Bolt Torque
50 lb-in. (5.7 Nm)
Side Bolt Torque
75 lb-in. (8.5 Nm)
