CYLINDER BLOCK/CRANKCASE
Page 4B-44 90-828631R3 MARCH 1999

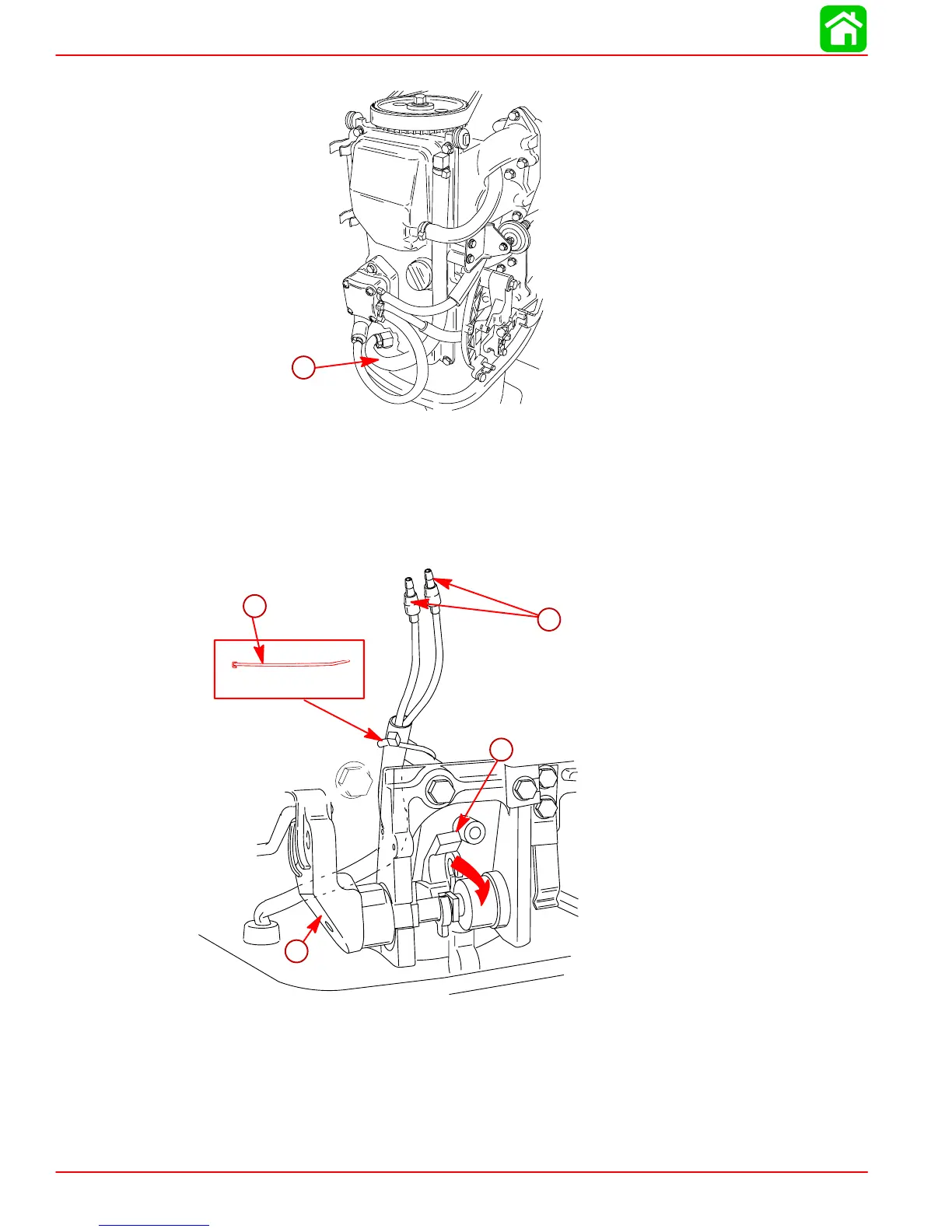

2. Reconnect the vent hose. Use sta-strap to fasten hose connections.
53726
a
a-Vent Hose
3. Engage the vertical shift shaft.
4. Reconnect the power trim harness wires.
5. Position the trim wiring harness away from the moving horizontal shift shaft. Fasten har-
ness to mounting boss with sta-strap as shown.
53859
c
d
b
a
a-Engage Vertical Shift Shaft and Close the Latch
b-Power Trim Harness Wires
c-Use Sta-strap to Fasten Wiring Harness Away from the Moving Horizontal Shift
Shaft
d-Horizontal Shift Shaft
