NON-BIGFOOT GEAR HOUSING
Page 6A-16 90-828631R3 MARCH 1999

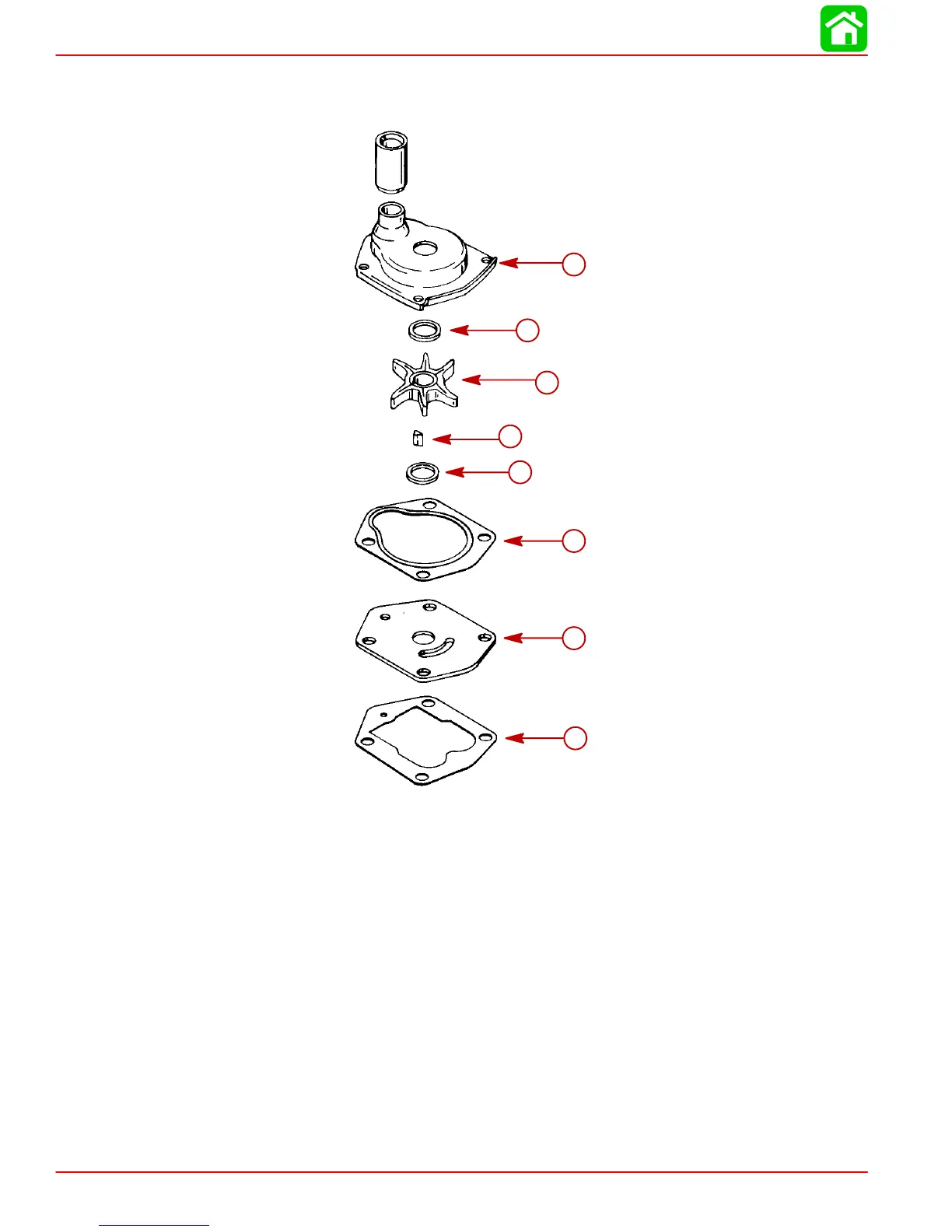

2. Remove cover, washer (above impeller), impeller, key and washer (below impeller).
3. Remove cover gasket, base plate and base gasket.
52692
a
b
c
d
e
f
g
h
a-Cover
b-Nylon Washer (above impeller)
c-Impeller
d-Key
e-Nylon Washer (below impeller)
f-Cover Gasket
g-Face Plate
h-Base Gasket
NOTE: Replace impeller if:
– Impeller blades are cracked, torn or worn.
– Impeller is glazed or melted
– Rubber portion of impeller is not bonded to impeller hub.
