NON-BIGFOOT GEAR HOUSING
Page 6A-1990-828631R3 MARCH 1999
NOTE: When removing propeller shaft assembly, cam follower may dislodge. Retrieve fol-
lower from gear housing.

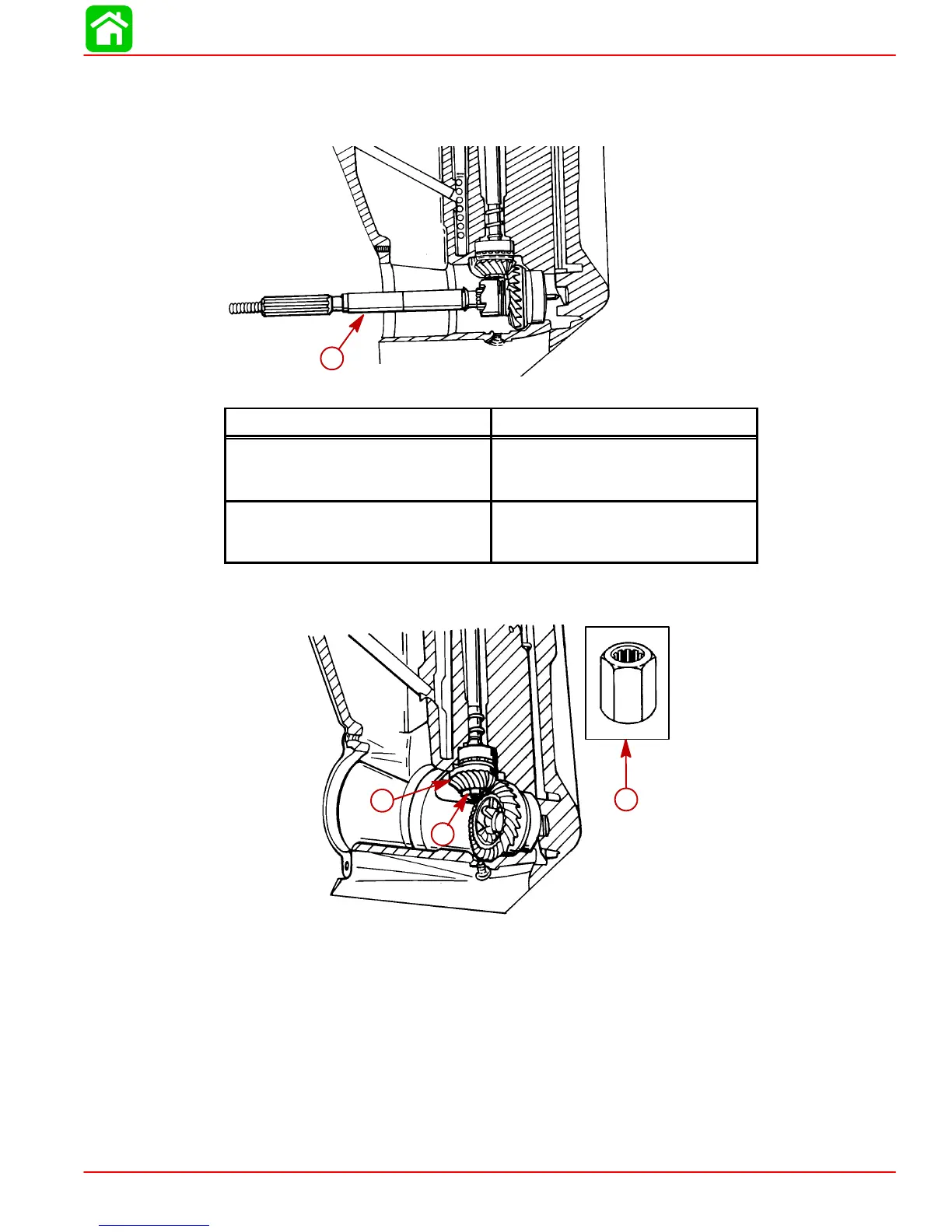

8. Remove propeller shaft assembly.
52864
a
a-Propeller Shaft
Models
Drive Shaft Holding Tool
4-Stroke
Mercury/Mariner
25, 30/40, and 45/50
91-83180M
2-Stroke
Force 40/50
Mercury/Mariner 30/40, 40/50
91-825196
9. Remove pinion nut.
52864
b
c
a
a-Drive Shaft Holding Tool
b-Pinion Nut
c-Pinion Gear
