NON-BIGFOOT GEAR HOUSING
Page 6A-2390-828631R3 MARCH 1999

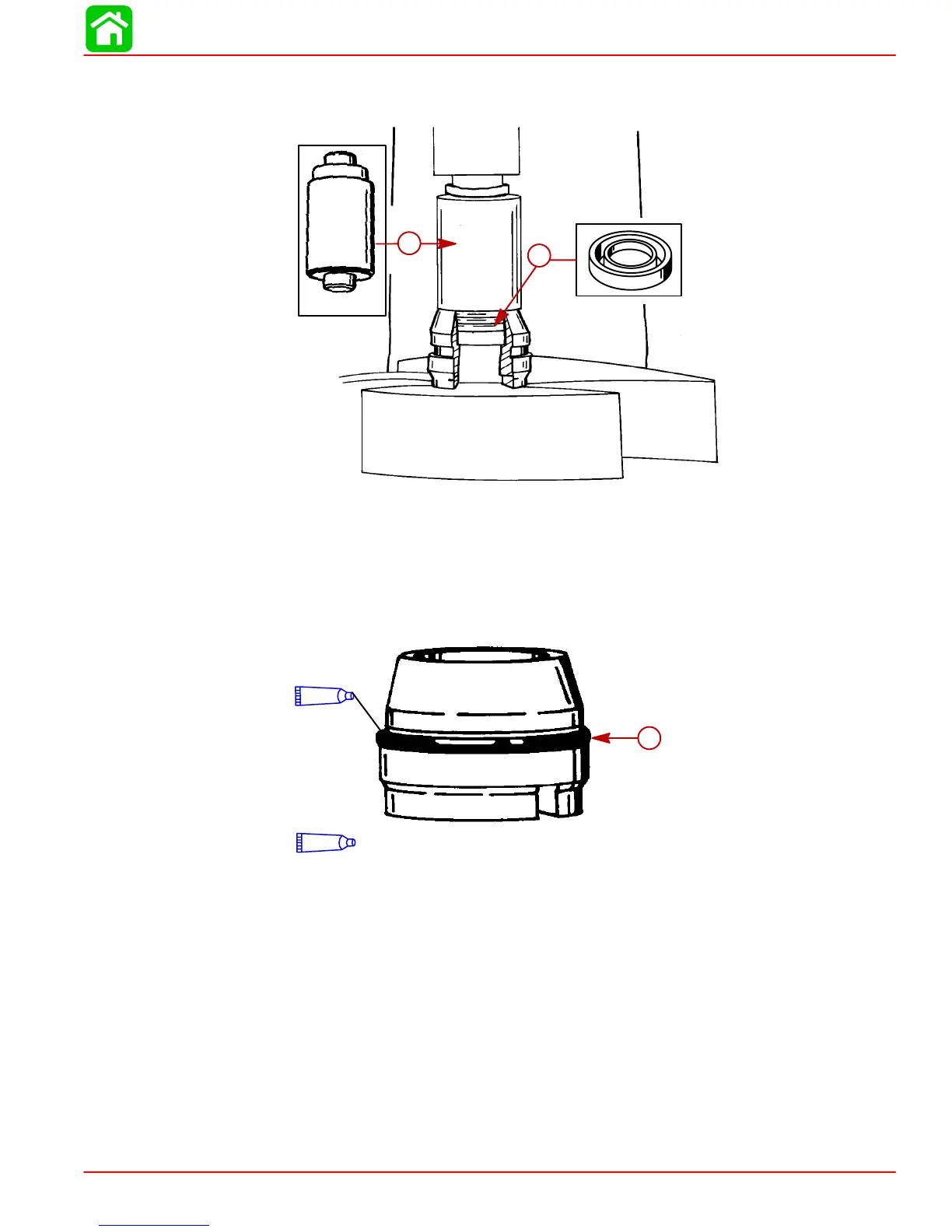

3. With lip of ribbed neoprene O.D. seal facing towards small shoulder of Mandrel
(91-825197), press seal into carrier until mandrel bottoms on carrier.
52853
91-825197
b
a
a-Seal (Ribbed Neoprene) Lip Facing Up
b-Mandrel (91-825197)
NOTE: Apply a light coat of 2-4-C w/Teflon (92-850736A1) to the lips of both seals after
installation in carrier.
4. Apply a light coat of 2-4-C w/Teflon to the new O-ring and install on carrier.
52825
95
95
2-4-C w/Teflon (92-850736A1)
a
a-O-ring
