NON-BIGFOOT GEAR HOUSING
Page 6A-26 90-828631R3 MARCH 1999

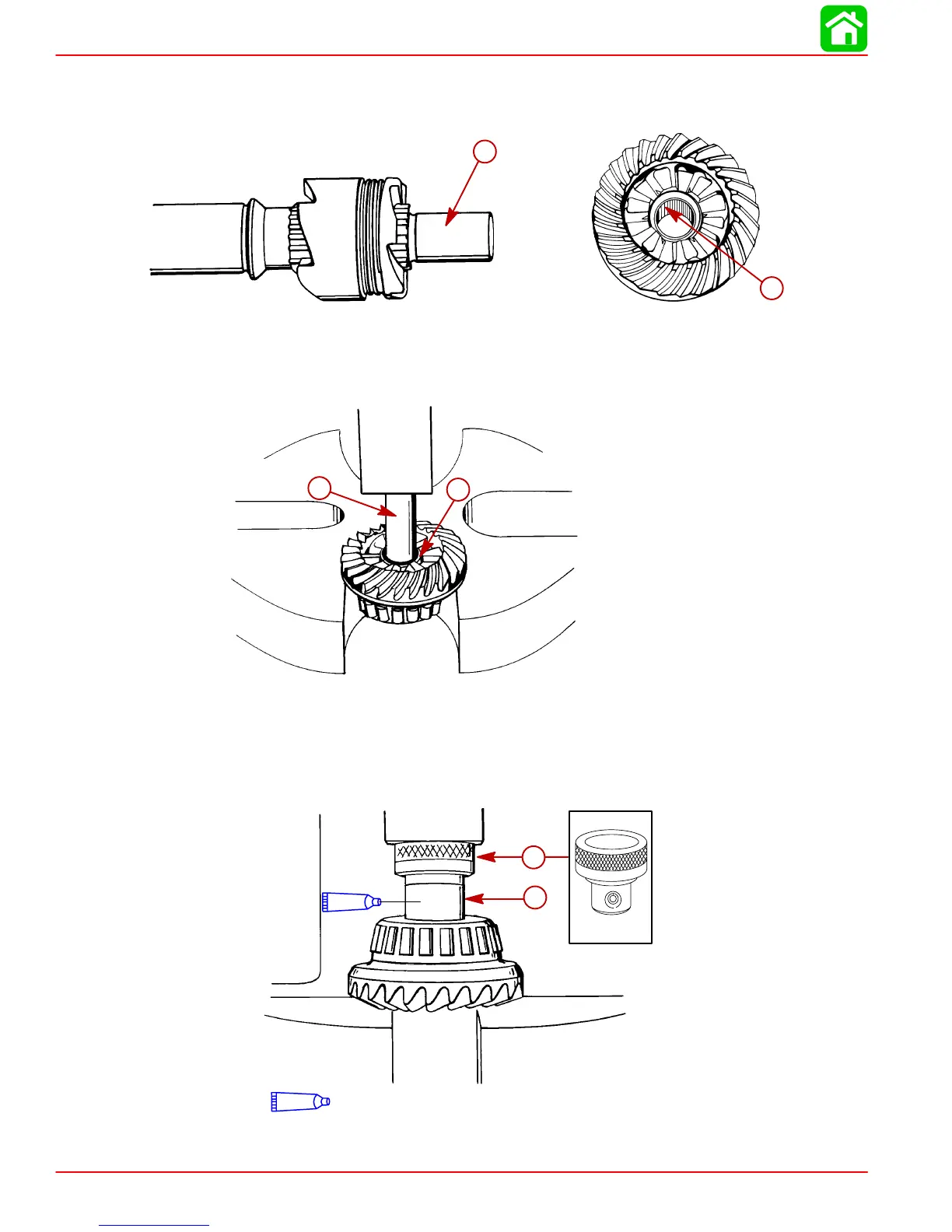

3. Inspect propeller shaft forward gear bearing surface to determine condition of forward
gear needle bearing. If bearing surface is discolored (from lack of lubricant), pitted or
worn, propeller shaft and bearing should be replaced.
52846
52874
b
a
a-Bearing Surface
b-Bearing
4. Use a suitable mandrel to press needle bearing out of forward gear.
52873
a
b
a-Mandrel (14 mm Socket)
b-Bearing
5. Use Driver 91-826872 to press new needle bearing into forward gear. Press on num-
bered side of bearing.
52847
87
87
Super Duty Gear Lubricant (92-850737A1)
91-826872
a
b
a-Driver (91-826872)
b-Bearing
