BIGFOOT GEAR HOUSING
Page 6B-34 90-828631R3 MARCH 1999

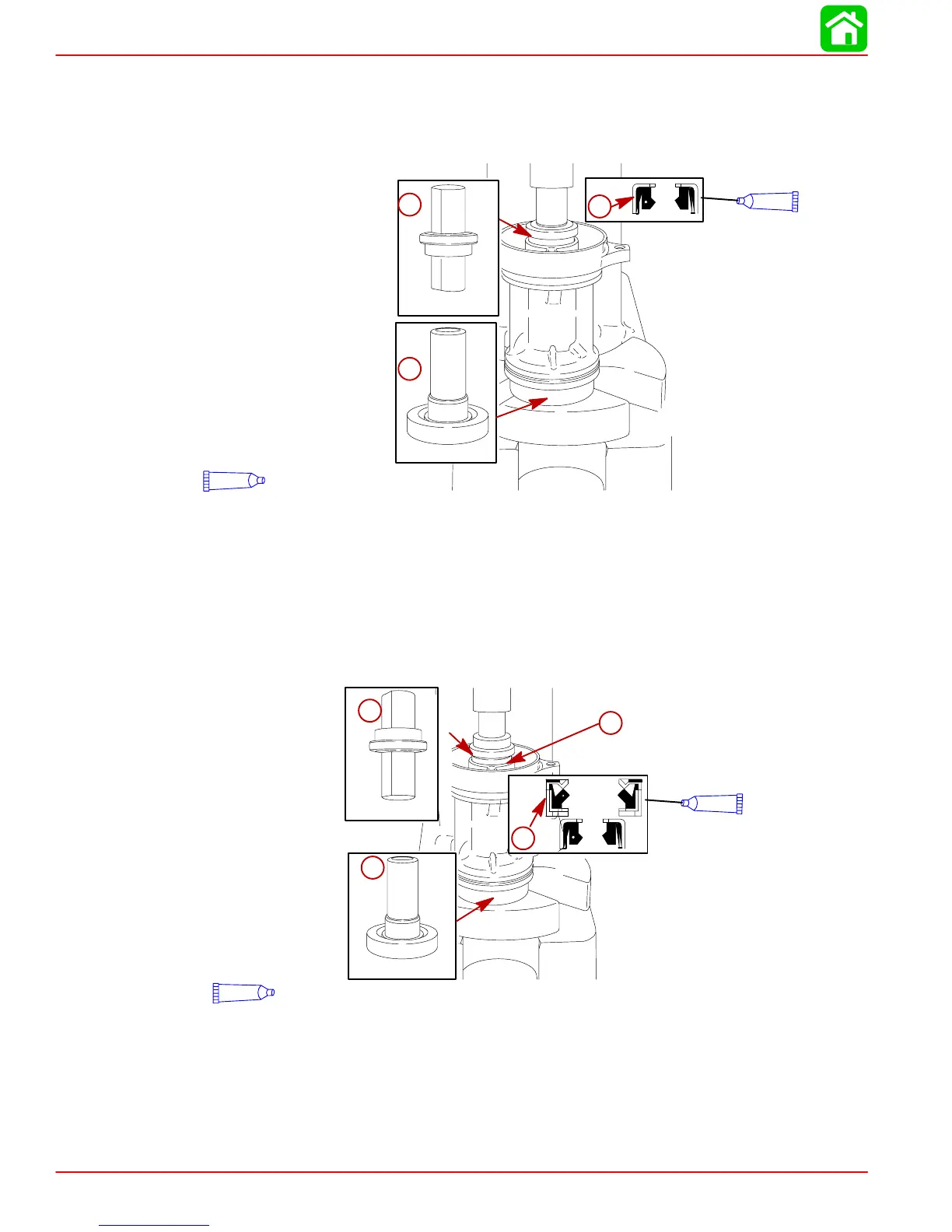

4. Place smaller diameter seal on longer shoulder of Oil Seal Driver (91-31108) with seal
lip away from shoulder.
5. Protect lip on front side of bearing carrier using Bearing Installation Tool (91-13945).
Apply Loctite 271 on O.D. of seal. Press seal into carrier until tool bottoms.
21040
a
b
c
7
Loctite “271” (92-809819)
7
91-31108
91-13945
a-Seal
b-Oil Seal Driver (91-31108)
c-Bearing Installation Tool (91-13945)
6. Place larger diameter seal on shorter shoulder of Oil Seal Driver (91-31108) with seal
lip toward shoulder.
7. Protect lip on front side of bearing carrier using Bearing Installation Tool (91-13945).
Apply Loctite 271 on O.D. of new seal. Press seal into carrier until tool bottoms.
21041
a
b
c
a
91-31108
91-13945
7
Loctite “271” (92-809819)
7
a-Seal
b-Oil Seal Driver (91-31108)
c-Bearing Installation Tool (91-13945)
