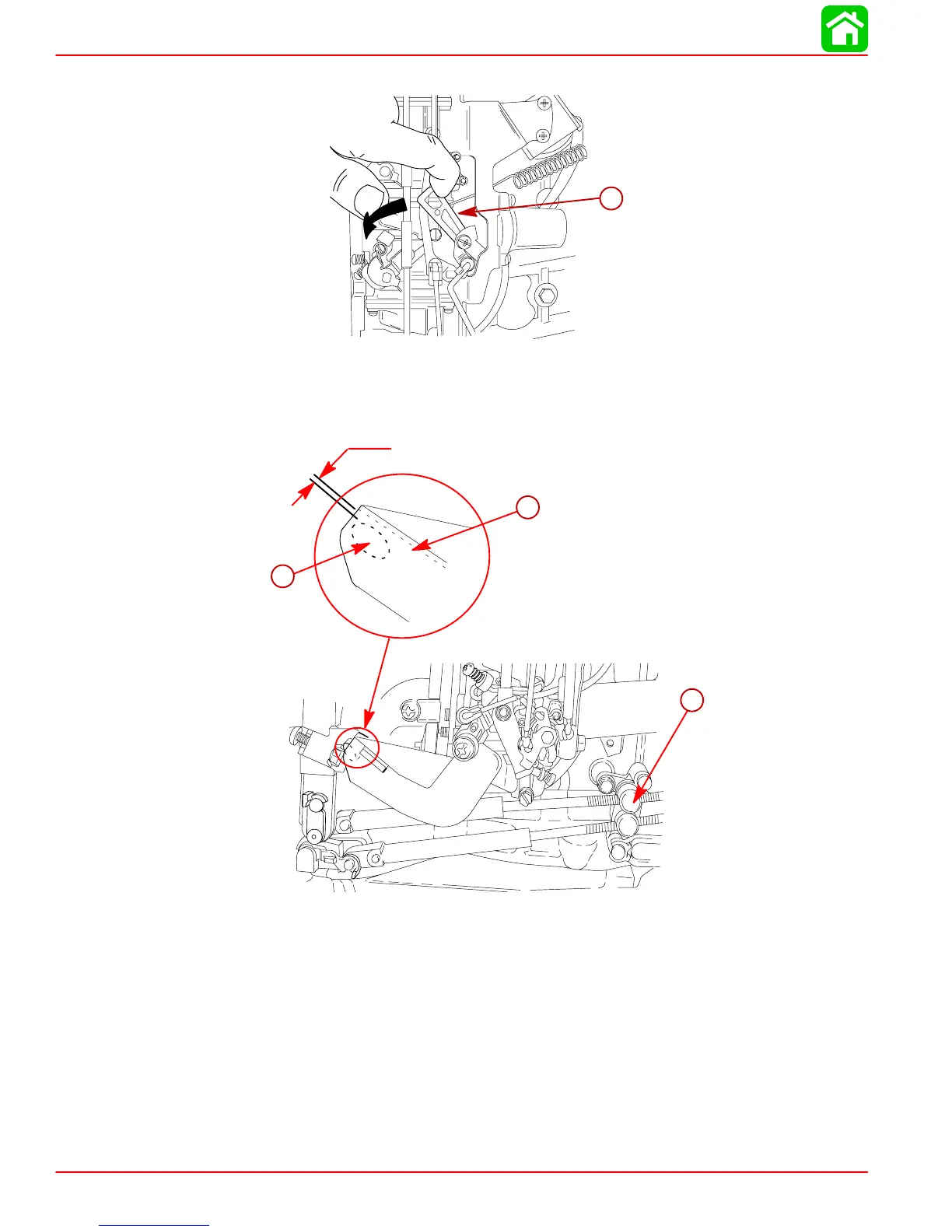

4. Move the throttle linkage arm down.
a
a-Throttle Linkage Arm
5. While holding down the throttle linkage arm (“a” Step 4), adjust the throttle barrel until
a 1/8 in. (3.2 mm) gap exists between the oval shaped boss and the cam.
1/8 in. (3.2 mm)
a
b
c
a-Throttle Barrel
b-Oval Shaped Boss
c-Cam
