Chapter 1 Introduction
1. 2. 2. Rear Panel

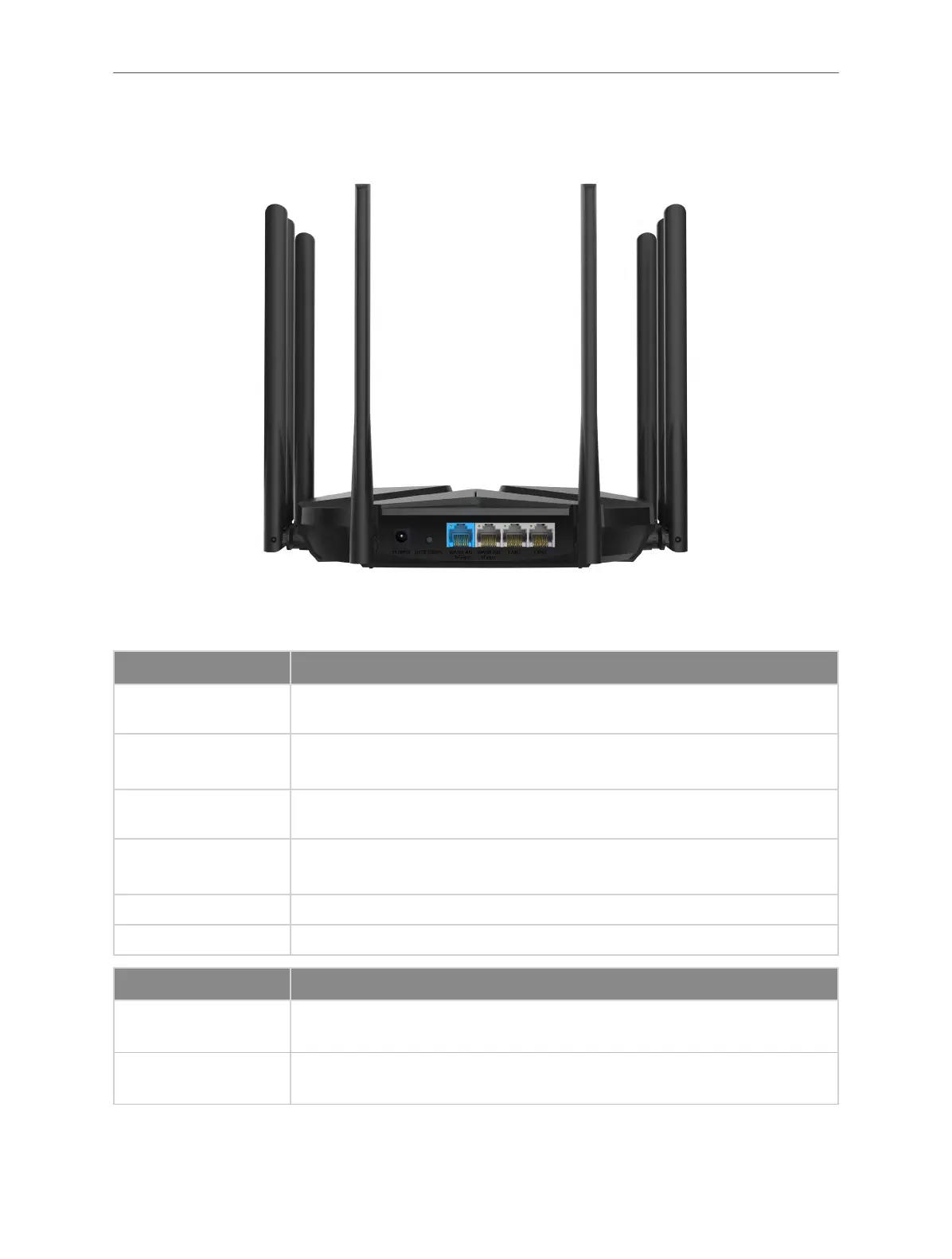

The following items are located on the rear panel (View from left to right).
Item Description
POWER Socket
The power socket is where you will connect the power adapter. Please use the
power adapter provided with this router.
RESET/WPS Button
Press and hold this button for more than 5 seconds to reset the router.
Press for 1 second to use the WPS function.
2.5Gbps WAN/LAN Port
Use the port as the WAN port to connect the DSL/cable Modem or Ethernet outlet.
Or use the port as the LAN port to connect local devices.
1Gbps
WAN/LAN Port
Use the port as the WAN port to connect the DSL/cable Modem or Ethernet outlet.
Or use the port as the LAN port to connect local devices.
LAN Ports These ports connect the router to the local devices.
Wireless Antennas To receive and transmit the wireless data.
Item Indication
WAN Port LED
Off: The WAN port is not connected.
On: The WAN port is connected.
LAN Port LED
Off: The LAN port is not connected.
On: The LAN port is connected.

Mercusys MR90X Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	6000 Mbit/s
WLAN data transfer rate (first band)	1148 Mbit/s
WLAN data transfer rate (second band)	4804 Mbit/s
Firewall security	SPI Firewall
Security algorithms	WPA, WPA2, WPA3
Package type	Box
Number of products included	1 pc(s)
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	4
Power source type	DC
VPN server	OpenVPN, PPTP supported
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Cables included	LAN (RJ-45)
Product type	Tabletop router
Product color	Black
Antennas quantity	8
Antenna direction type	Omni-directional

Weight and Dimensions

Depth	172.2 mm
Width	209 mm
Height	42.4 mm
