Mercusys MR90X User Manual

57
Chapter 4 Congure the Router in Wireless Router Mode
4. 12. 2. Backup & Restore
The configuration settings are stored as a configuration file in the router. You can backup
the configuration file in your computer for future use and restore the router to the previous
settings from the backup file when needed.
1. Visit http://mwlogin.net, and log in with your Mercusys ID or the password you set for the
router.
2. Go to Advanced > System > Backup & Restore.

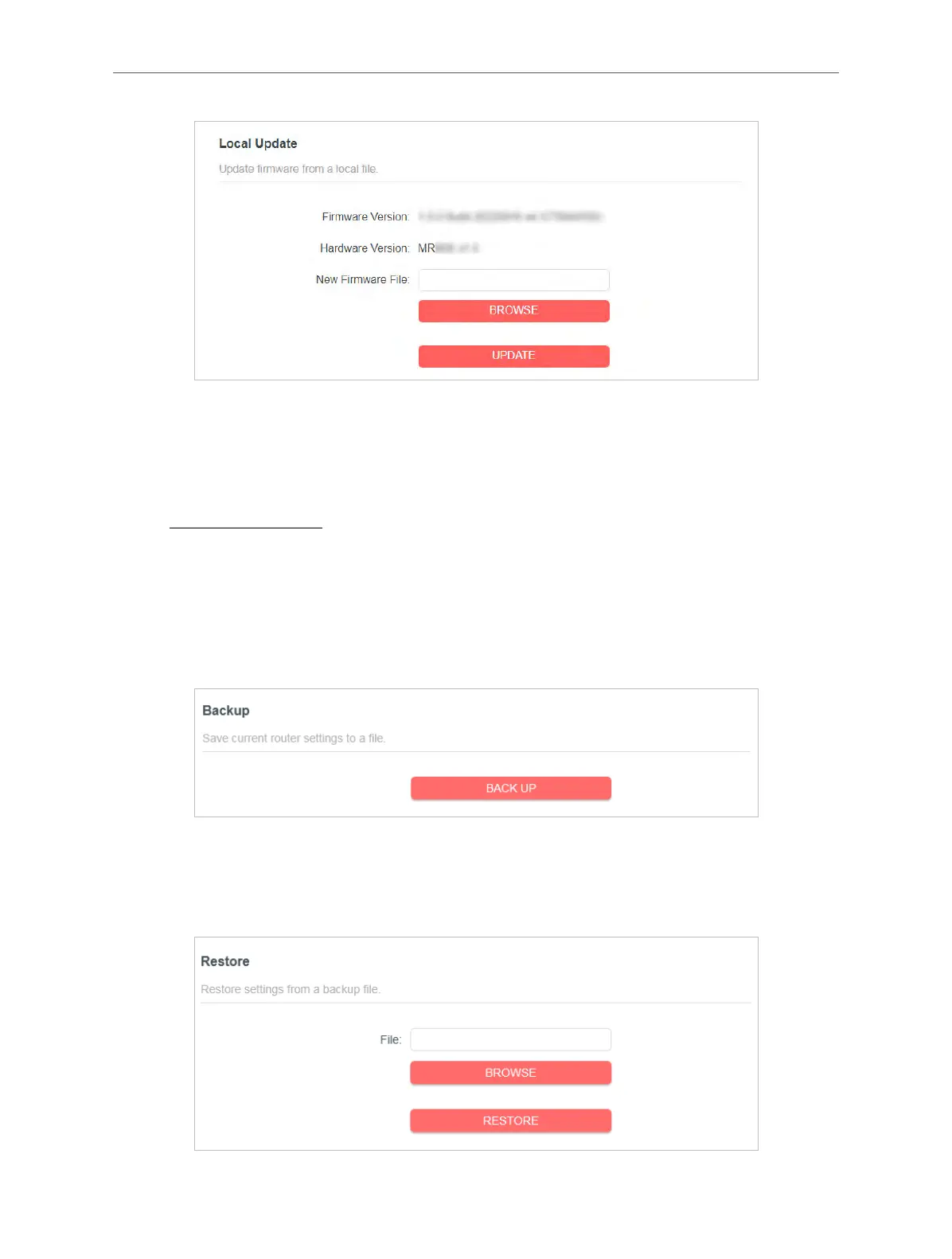

To backup configuration settings:
Click BACK UP to save a copy of the current settings in your local computer. A “.bin“ file of
the current settings will be stored in your computer.
To restore configuration settings:
1. Click BROWSE to locate the backup configuration file stored in your computer, and click
RESTORE.
2. Wait a few minutes for the restoring and rebooting.

Mercusys MR90X Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	6000 Mbit/s
WLAN data transfer rate (first band)	1148 Mbit/s
WLAN data transfer rate (second band)	4804 Mbit/s
Firewall security	SPI Firewall
Security algorithms	WPA, WPA2, WPA3
Package type	Box
Number of products included	1 pc(s)
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	4
Power source type	DC
VPN server	OpenVPN, PPTP supported
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Cables included	LAN (RJ-45)
Product type	Tabletop router
Product color	Black
Antennas quantity	8
Antenna direction type	Omni-directional

Weight and Dimensions

Depth	172.2 mm
Width	209 mm
Height	42.4 mm
