Mercusys MR90X User Manual

06
Chapter 2
Connect to the Internet

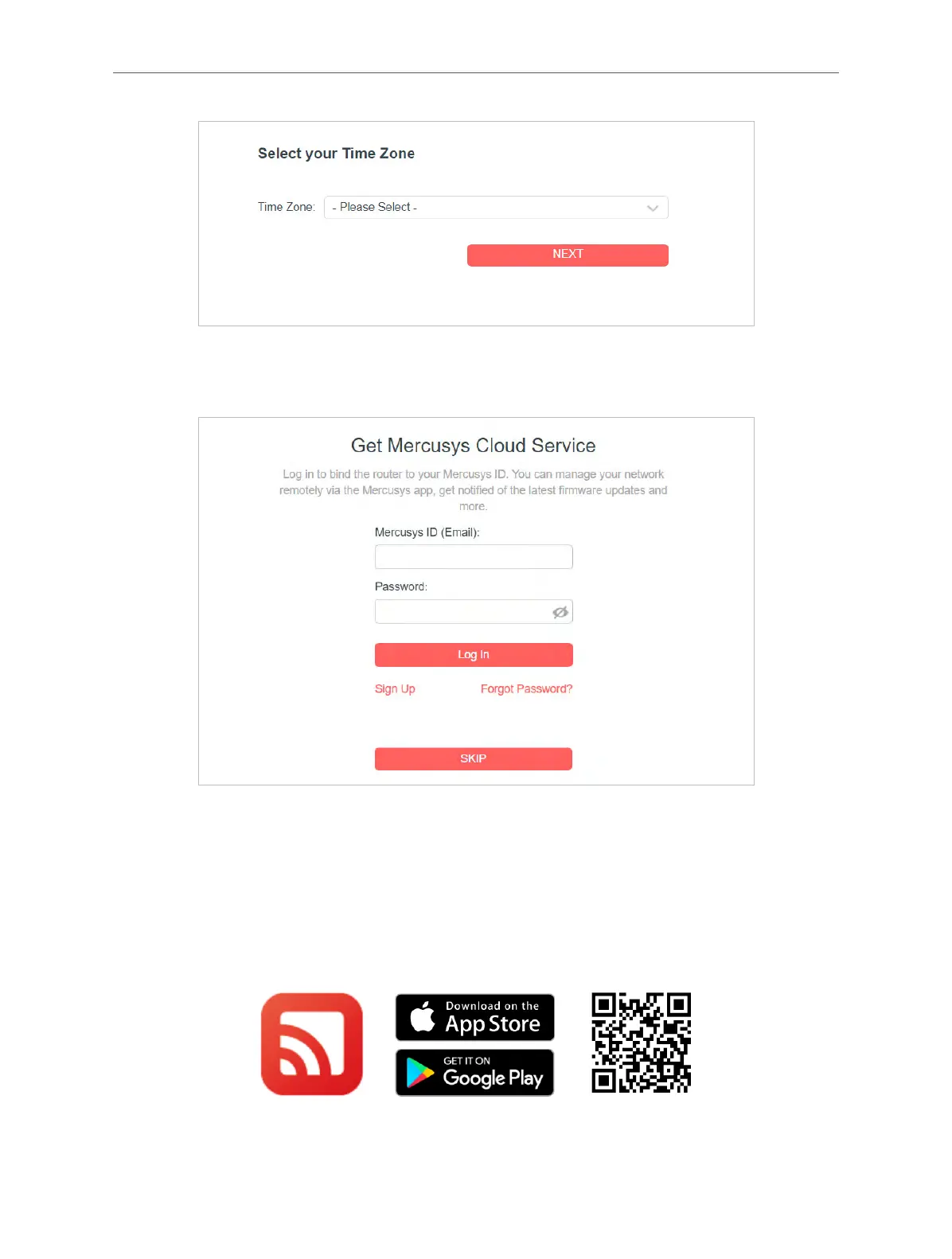

4. To enjoy a more complete service from Mercusys (remote management, Mercusys DDNS,
and more.), log in with your Mercusys ID to bind the cloud router.
Note: If you don’t have an account, sign up first.
5. Enjoy! For wireless devices, you may have to reconnect to the wireless network if you
have customized the SSID (wireless name) and password during the configuration.
2. 3. 2. Method 2: Via MERCUSYS App
1. Scan the QR code to download the MERCUSYS app from the Apple App Store or Google
Play.
2. Launch the app and log in with your Mercusys ID.
Note: If you don’t have an account, create one first.

Mercusys MR90X Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	6000 Mbit/s
WLAN data transfer rate (first band)	1148 Mbit/s
WLAN data transfer rate (second band)	4804 Mbit/s
Firewall security	SPI Firewall
Security algorithms	WPA, WPA2, WPA3
Package type	Box
Number of products included	1 pc(s)
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	4
Power source type	DC
VPN server	OpenVPN, PPTP supported
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Cables included	LAN (RJ-45)
Product type	Tabletop router
Product color	Black
Antennas quantity	8
Antenna direction type	Omni-directional

Weight and Dimensions

Depth	172.2 mm
Width	209 mm
Height	42.4 mm
