Mercusys MR90X User Manual

18
Chapter 4 Congure the Router in Wireless Router Mode
• Manual - In this mode, the internet connection is controlled manually by clicking the
Connect/Disconnect button. This mode also supports the Max Idle Time function
as On Demand mode. Enter a maximum time (in minutes), the internet connection
can be inactive before it is terminated into the Max Idle Time. The default value is
15 minutes. If you want the internet connection remains active all the time, enter 0
(zero).
Note:
Sometimes the connection cannot be terminated although you have specified the Max Idle Time because some applications
are visiting the internet continually in the background.

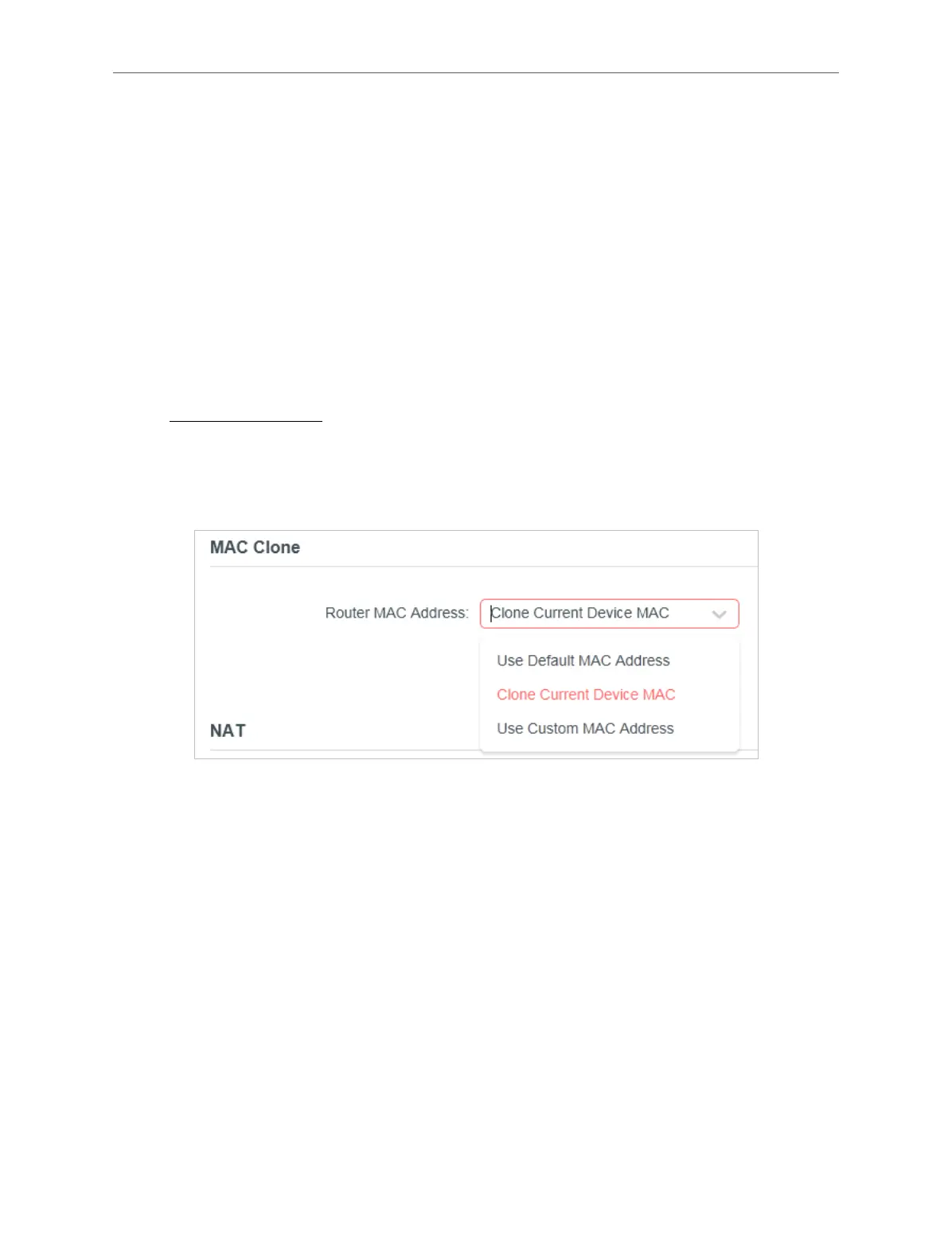

4. 3. 3. MAC Clone
1. Visit http://mwlogin.net, and log in with your Mercusys ID or the password you set for the
router.
2. Go to Advanced > Network > Internet and locate the MAC Clone section.
3. Configure Router MAC Address and click SAVE.
• Use Default MAC Address - Do not change the default MAC address of your router
in case the ISP does not bind the assigned IP address to the MAC address.
• Use Current MAC Address - Select to copy the current MAC address of the
computer that is connected to the router, in case the ISP binds the assigned IP
address to the MAC address.
• Use Custom MAC Address - Select if your ISP requires you to register the MAC
address and enter the correct MAC address in this field, in case the ISP binds the
assigned IP address to the specific MAC address.
Note:
• You can only use the MAC Address Clone function for PCs on the LAN.
• If you have changed the WAN MAC address when the WAN connection is PPPoE, it will not take effect until the connection is
re-established.

Mercusys MR90X Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	6000 Mbit/s
WLAN data transfer rate (first band)	1148 Mbit/s
WLAN data transfer rate (second band)	4804 Mbit/s
Firewall security	SPI Firewall
Security algorithms	WPA, WPA2, WPA3
Package type	Box
Number of products included	1 pc(s)
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN (RJ-45) ports	4
Power source type	DC
VPN server	OpenVPN, PPTP supported
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Cables included	LAN (RJ-45)
Product type	Tabletop router
Product color	Black
Antennas quantity	8
Antenna direction type	Omni-directional

Weight and Dimensions

Depth	172.2 mm
Width	209 mm
Height	42.4 mm
